Shop All Hazardous Location Plugs
Molex

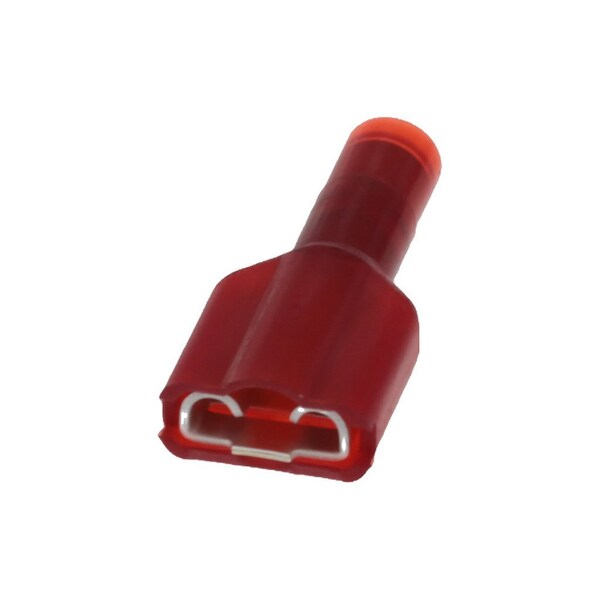

.250X.032 FEM. FIQD AVIKRIMP (AA-5261)
Mfr # 19002-0001
Zoro # G2758129
product price: $0.44
/ea
Sold in multiples of 350 for $154.00
$154.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Gender Female
- Tab Thickness 0.81mm
- Wire Size AWG 18, 20, 22
- Insulation Nylon (PA)
- Material - Metal Brass
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 19002-0001
- Zoro # G2758129
- Country of Origin United States
- Category Hazardous Location Plugs
Dimensions
Wire Size AWG | 18, 20, 22 |
Tab Width | 6.35mm |
Wire Insulation Diameter | 3.17mm max. |
Details
Gender | Female |
Tab Thickness | 0.81mm |
Insulation | Nylon (PA) |
Material - Metal | Brass |
Barrel Type | Closed |
Material - Plating Termination | Tin |
UL | E79133 |
Voltage - Maximum | 300V |
Orientation | Straight |
CSA | LR18689 |
Material - Plating Mating | Tin |
Flammability | 94V-2 |
Temperature Range - Operating | -65° to +105°C |
Color - Resin | Red |
