Molex

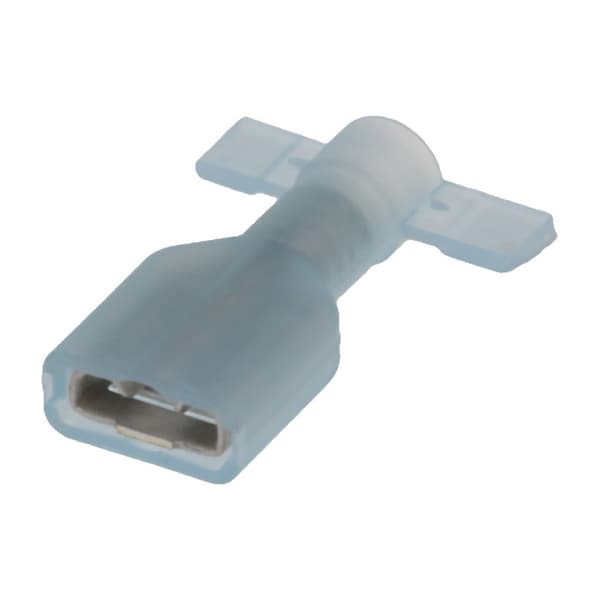

.250 X .032 FML FIQD TAPED (BB-2206T)
Mfr # 19003-0042
Zoro # G2745081
product price: $0.43
/ea
Sold in multiples of 1000 for $430.00
$430.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Color - Resin Blue
- Termination Interface: Style Crimp or Compression
- Material - Plating Mating Tin
- Material - Metal Brass
- UL E79133
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 19003-0042
- Zoro # G2745081
- Country of Origin United States
- Category Hazardous Location Plugs
Dimensions
Tab Width | 6.35mm |
Wire Size mm² | 1.30-2.00 |
Wire Insulation Diameter | 3.68mm max. |
Wire Size AWG | 14, 16 |
Details
Color - Resin | Blue |
Termination Interface: Style | Crimp or Compression |
Material - Plating Mating | Tin |
Material - Metal | Brass |
UL | E79133 |
Gender | Female |
Plating min - Termination | 4.064µm |
Voltage - Maximum | 600V |
Barrel Type | Closed |
Temperature Range - Operating | -65° to +105°C |
Flammability | 94V-2 |
CSA | LR18689 |
Plating min - Mating | 4.064µm |
Material - Plating Termination | Tin |
Tab Thickness | 0.81mm |
Orientation | Straight |
Insulation | Nylon (PA) |
Material - Resin | Nylon |
Description
