Molex

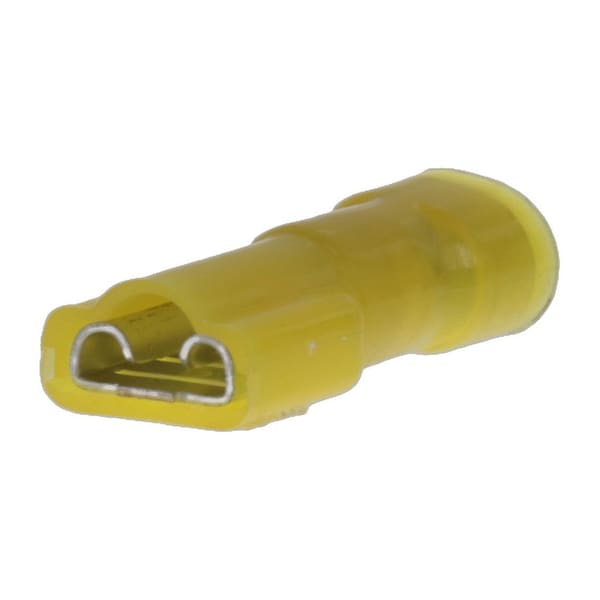

.250 X .032 AVIKRIMP FIQD OVAL EXP FEM

product price: $2.19
/ea
Sold in multiples of 60 for $131.40
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Wire Size AWG 16+16, 18+18, 20+20, 22+22
  • Material - Plating Termination Tin
  • Color - Resin Yellow
  • Tab Width 6.35mm
  • Insulation Nylon (PA)
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wire Size AWG 16+16, 18+18, 20+20, 22+22
Tab Width 6.35mm
Wire Insulation Diameter 6.89x4.32mm max.

Details

Material - Plating Termination Tin
Color - Resin Yellow
Insulation Nylon (PA)
UL E79133
Orientation Straight
CSA LR18689
Material - Plating Mating Tin
Material - Metal Brass
Flammability 94V-2
Tab Thickness 0.81mm
Gender Female
Temperature Range - Operating -65° to +105°C
Barrel Type Closed
Voltage - Maximum 300V

Description
