Molex

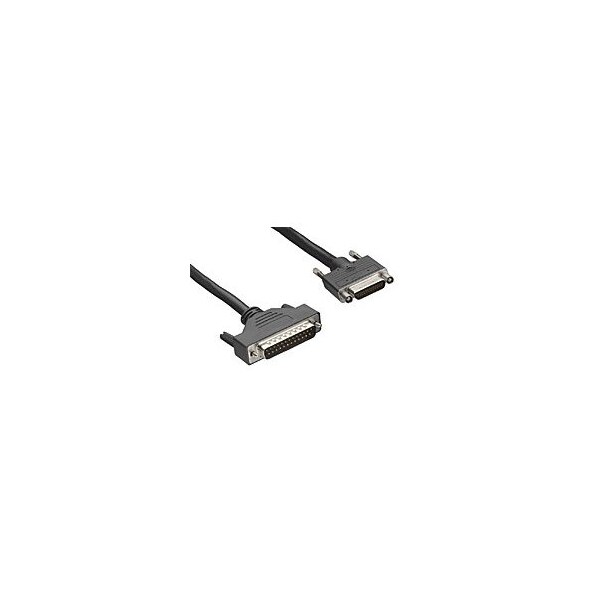

25 Pos Cmd To 25 Pin Dsub 72 Inch Cblasy
Mfr # 834249062
Zoro # G405924809
product price: $80.49
/ea
Free Shipping & Returns
$80.49
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Shielded Yes
- Cable Length 1.83m
- Series 83424
- Plating min - Mating 0.127µm
- Gender Male-Female
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 834249062
- Zoro # G405924809
- Country of Origin China
- Category Communication Cables
Dimensions
Cable Length | 1.83m |
Wire Size AWG | 28 |
Details
Shielded | Yes |
Series | 83424 |
Plating min - Mating | 0.127µm |
Gender | Male-Female |
Number of Rows | 2 |
Lock to Mating Part | Yes |
Shield Type | AL Foil |
Termination Interface: Style | Crimp or Compression |
Circuits (Loaded) | 25 |
Material - Plating Termination | Tin |
Current - Maximum per Contact | 1.0A |
Plating min - Termination | 1.270µm |
Wire/Cable Type | PVC |
Connector to Connector | Commercial Micro-D-to-D-Sub |
Product Name | Commercial Micro-D,D-Sub |
Assembly Configuration | Dual Ended Connectors |
Single Ended | No |
