Molex

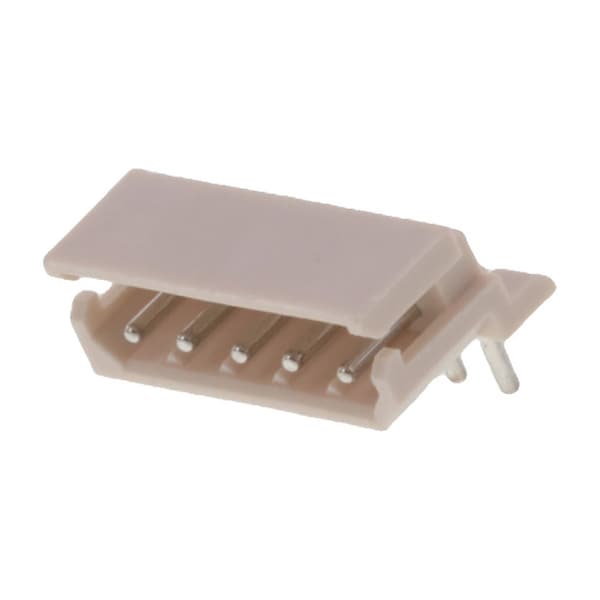

2.5 Low Profile Wafer Assy 5Ckt
Mfr # 22-05-7055
Zoro # G4035163
product price: $0.24
/ea
Sold in multiples of 550 for $132.00
$132.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- PCB Thickness - Recommended 1.60mm
- Current - Maximum per Contact 3.0A
- Material - Plating Mating Tin
- Material - Plating Termination Tin
- Pitch - Mating Interface 2.50mm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 22-05-7055
- Zoro # G4035163
- Country of Origin China
- Category Hazardous Location Plugs
Dimensions
PC Tail Length | 3.50mm |
Details
PCB Thickness - Recommended | 1.60mm |
Current - Maximum per Contact | 3.0A |
Material - Plating Mating | Tin |
Material - Plating Termination | Tin |
Pitch - Mating Interface | 2.50mm |
Shrouded | Fully |
Polarized to Mating Part | Yes |
Lock to Mating Part | Yes |
Voltage - Maximum | 250V |
Termination Interface: Style | Through Hole |
Orientation | Right Angle |
Circuits (Loaded) | 5 |
Plating min - Termination | 4.064µm |
Plating min - Mating | 4.064µm |
Number of Rows | 1 |
UL | E29179 |
Circuits (maximum) | 5 |
Flammability | 94V-0 |
Temperature Range - Operating | -40° to +105°C |
CSA | LR19980 |
Material - Resin | Nylon |
Durability (mating cycles max) | 30 |
Color - Resin | Natural |
