  9. 2.4-5Ghz Wifi Ant Edge-Fed 200Mm Mhf4
Shop All Communication Cables
Molex

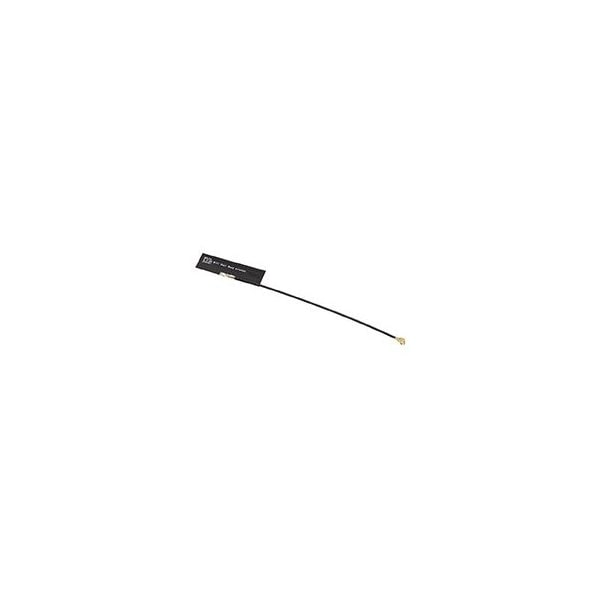

2.4-5Ghz Wifi Ant Edge-Fed 200Mm Mhf4

product price: $2.59
/ea
Sold in multiples of 48 for $124.32
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Length 35.00mm
  • Cable Length 200.00mm
  • Width 11.00mm
  • Thickness 0.10mm
  • Polarization Linear
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Length 35.00mm
Cable Length 200.00mm
Width 11.00mm

Details

Thickness 0.10mm
Polarization Linear
Total Efficiency >60% @2.4 GHz, >64% @ 5 GHz
Band#1 F_End (MHz) 2483.5
Electrical Connectivity Cable
Peak Gain (dBi) 1.6 @ 2.4 GHz, 2.8 @ 5 GHz
Band#1 F_Start (MHz) 2400
Radiation Pattern Omnidirectional
Band#2 F_End (MHz) 5850
Return Loss - S11 (dB) < -10
Mounting Style Adhesive
Band#2 F_Start (MHz) 5150
Function Signal
Product Name 2.4/5GHz Wi-Fi Antenna
Protocol BLE, BT, Thread, Wi-Fi, Wireless Hart, Zigbee
Type Internal, Wi-Fi Antenna
Series 204281
Component Type Flexible Antenna with Cable
