Molex

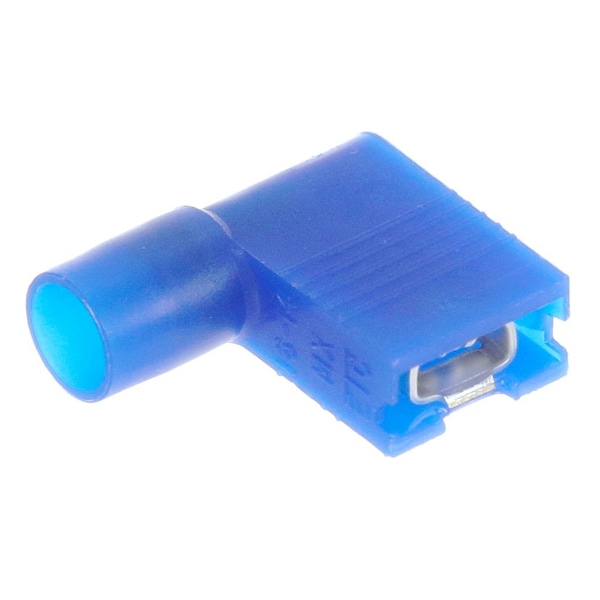

.187X.032 FIQD FLAG AVIKRIMP (BB-5225)
Mfr # 19006-0017
Zoro # G2755618
product price: $0.72
/ea
Sold in multiples of 200 for $144.00
$144.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- CSA LR18689
- Tab Width 4.75mm
- UL E79133
- Wire Size AWG 14, 16
- Insulation Nylon (PA)
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 19006-0017
- Zoro # G2755618
- Country of Origin United States
- Category Hazardous Location Plugs
Dimensions
Tab Width | 4.75mm |
Wire Size AWG | 14, 16 |
Wire Size mm² | 1.30-2.00 |
Wire Insulation Diameter | 4.32mm max. |
Details
CSA | LR18689 |
UL | E79133 |
Insulation | Nylon (PA) |
Glow-Wire Capable | Yes |
Flammability | 94V-2 |
Tab Thickness | 0.81mm |
Gender | Female |
Material - Metal | Brass |
Material - Plating Termination | Tin |
Barrel Type | Closed |
Material - Resin | Nylon |
Voltage - Maximum | 600V |
Material - Plating Mating | Tin |
Temperature Range - Operating | -65° to +105°C |
Orientation | Flag |
Color - Resin | Blue |
