Molex

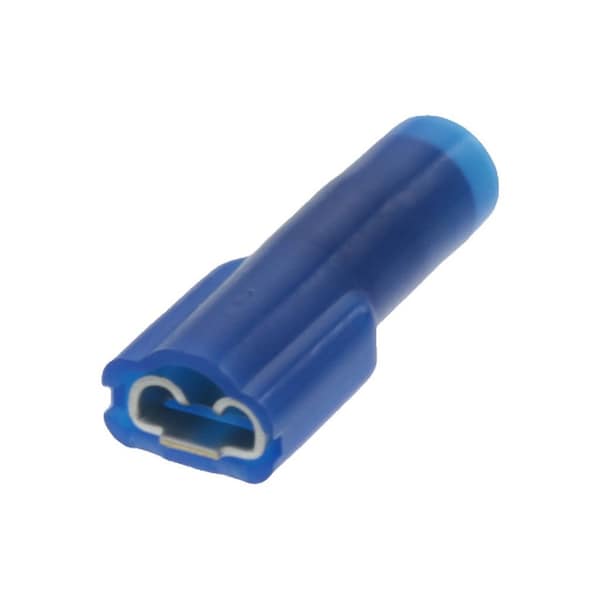

.187X.032 FEM. FIQD AVIKRIMP (BB-5273)
Mfr # 19002-0031
Zoro # G2745474
product price: $0.69
/ea
Sold in multiples of 250 for $172.50
$172.50
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Orientation Straight
- CSA LR18689
- Gender Female
- Tab Width 4.75mm
- Flammability 94V-2
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 19002-0031
- Zoro # G2745474
- Country of Origin United States
- Category Hazardous Location Plugs
Dimensions
Tab Width | 4.75mm |
Wire Size AWG | 14, 16 |
Wire Size mm² | 1.30-2.00 |
Wire Insulation Diameter | 3.94mm max. |
Details
Orientation | Straight |
CSA | LR18689 |
Gender | Female |
Flammability | 94V-2 |
Material - Plating Termination | Tin |
Material - Plating Mating | Tin |
Color - Resin | Blue |
Insulation | Nylon (PA) |
Material - Metal | Brass |
Temperature Range - Operating | -65° to +105°C |
Barrel Type | Closed |
Tab Thickness | 0.81mm |
UL | E79133 |
Voltage - Maximum | 300V |
