Shop All Wire Terminals
Molex

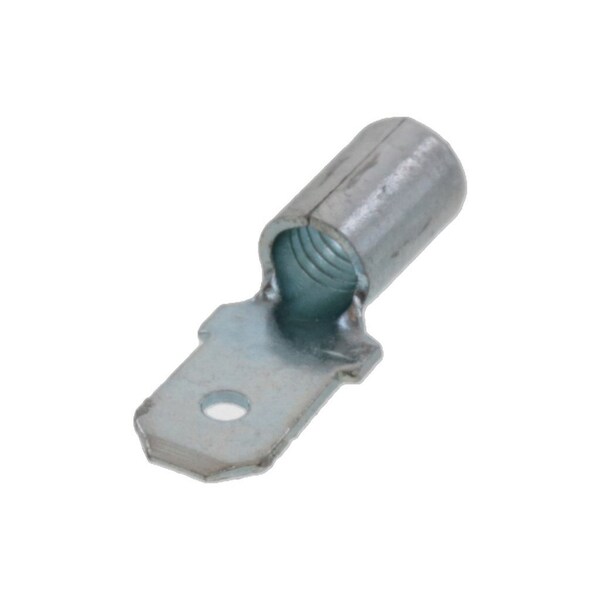

187X020 Male Qd Krimpt Zinc Mct-17 Spm
Mfr # 190220022
Zoro # G005899439
Sold in multiples of 8000 for $960.00
$960.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Wire Range 16 to 14 AWG
- Insulation Type Non-Insulated
- Seam Closed
- Connection Type Male
- Connection Material Brass
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 190220022
- Zoro # G005899439
- Country of Origin United States
- Category Wire Terminals
Dimensions
Wire Size (AWG) | 14, 16 |
Tab Width | 4.75mm |
Details
Wire Range | 16 to 14 AWG |
Insulation Type | Non-Insulated |
Seam | Closed |
Connection Type | Male |
Connection Material | Brass |
Tab Thickness | 0.51mm |
Lock to Mating Part | None |
Temperature Range - Operating | Per Wire Specification |
Material - Plating Mating | Zinc Chromate |
Material - Plating Termination | Zinc Chromate |
Plating min - Mating | 5.080µm |
Orientation | Straight |
Series | 19022 |
Insulated | No |
Glow-Wire Capable | No |
Insulation | None |
Voltage - Maximum | Per Wire Specification |
Product Name | Krimptite |
Type | Quick Disconnect |
Polarized to Mating Part | No |
