Molex

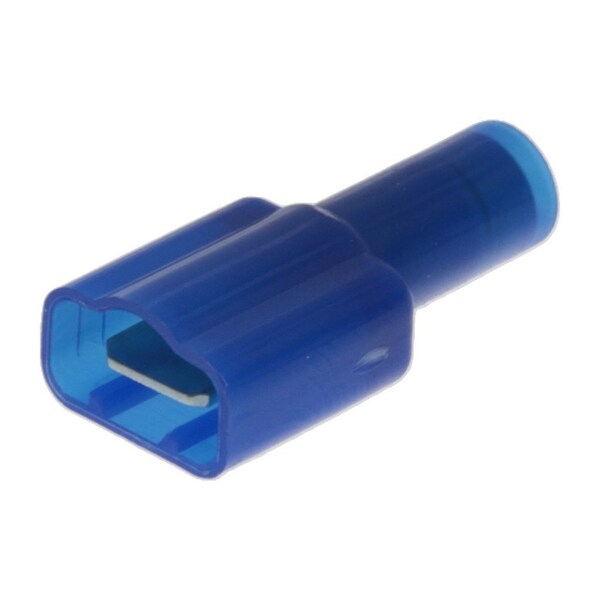

.187X.020 MALE FIQD AVIKRIMP (BB-5268)
Mfr # 19001-0008
Zoro # G2750934
product price: $0.92
/ea
Sold in multiples of 150 for $138.00
$138.00
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Wire Size AWG 14, 16
- Plating min - Termination 5.080µm
- Gender Male
- Material - Plating Mating Zinc Chromate
- Material - Metal Brass
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 19001-0008
- Zoro # G2750934
- Country of Origin United States
- Category Hazardous Location Plugs
Dimensions
Wire Size AWG | 14, 16 |
Wire Insulation Diameter | 4.32mm max. |
Tab Width | 4.75mm |
Wire Size mm² | 1.30-2.00 |
Details
Plating min - Termination | 5.080µm |
Gender | Male |
Material - Plating Mating | Zinc Chromate |
Material - Metal | Brass |
Color - Resin | Blue |
Voltage - Maximum | 300V |
Plating min - Mating | 5.080µm |
Material - Plating Termination | Zinc Chromate |
Flammability | 94V-2 |
Barrel Type | Closed |
Tab Thickness | 0.51mm |
UL | E79133 |
Insulation | Nylon (PA) |
Temperature Range - Operating | -65° to +105°C |
Orientation | Straight |
CSA | LR18689 |
