Molex

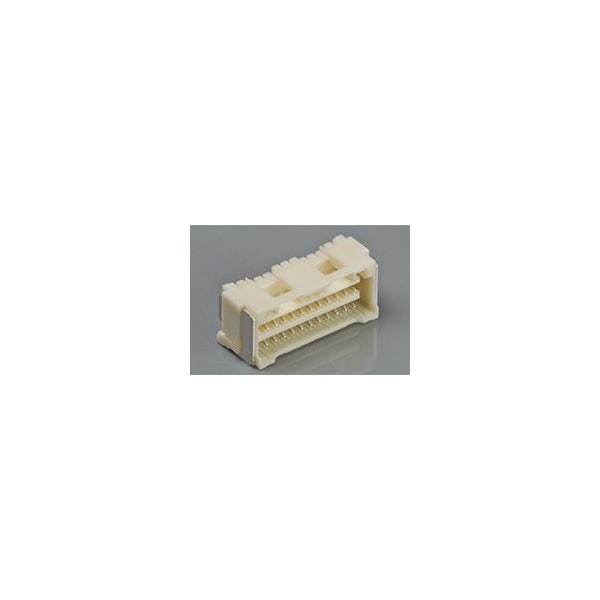

1.5 W/B Dual RA Rec 16Ckt EmbsTpPkgBeige
Mfr # 503148-1690
Zoro # G2753691
product price: $1.99
/ea
Sold in multiples of 550 for $1,094.50
$1,094.50
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Temperature Range - Operating -40° to +105°C
- Polarized to PCB Yes
- Lock to Mating Part Yes
- Current - Maximum per Contact 1.0A
- Orientation Right Angle
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 503148-1690
- Zoro # G2753691
- Country of Origin Japan
- Category Hazardous Location Plugs
Dimensions
Mated Height | 9.20mm |
Details
Temperature Range - Operating | -40° to +105°C |
Polarized to PCB | Yes |
Lock to Mating Part | Yes |
Current - Maximum per Contact | 1.0A |
Orientation | Right Angle |
Circuits (maximum) | 16 |
Voltage - Maximum | 100V |
Material - Plating Mating | Tin |
Material - Metal | Copper Alloy |
Pitch - Termination Interface | 1.50mm |
Color - Resin | Beige |
Number of Rows | 2 |
Circuits (Loaded) | 16 |
PCB Retention | Yes |
Pitch - Mating Interface | 1.50mm |
PCB Thickness - Recommended | 1.20mm, 1.70mm |
Termination Interface: Style | Surface Mount |
Durability (mating cycles max) | 30 |
Polarized to Mating Part | Yes |
