Shop All Hazardous Location Plugs
Molex

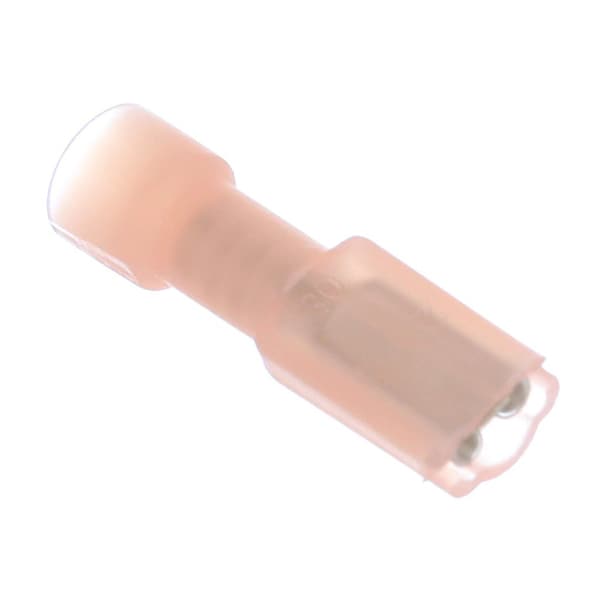

.110 X .020 FEMALE FIQD (AA-2204)
Mfr # 19003-0024
Zoro # G2081612
product price: $0.38
/ea
Sold in multiples of 350 for $133.00
$133.00
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- CSA LR18689
- Material - Metal Brass
- Wire Size AWG 18, 20, 22
- Plating min - Mating 4.064µm
- Barrel Type Closed
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 19003-0024
- Zoro # G2081612
- Country of Origin United States
- Category Hazardous Location Plugs
Dimensions
Wire Size AWG | 18, 20, 22 |
Wire Insulation Diameter | 3.43mm max. |
Tab Width | 2.79mm |
Details
CSA | LR18689 |
Material - Metal | Brass |
Plating min - Mating | 4.064µm |
Barrel Type | Closed |
Voltage - Maximum | 600V |
Insulation | Nylon (PA) |
Plating min - Termination | 4.064µm |
Temperature Range - Operating | -65° to +105°C |
Material - Resin | Nylon |
Orientation | Straight |
Material - Plating Termination | Tin |
Tab Thickness | 0.51mm |
UL | E79133 |
Color - Resin | Salmon |
Material - Plating Mating | Tin |
Flammability | 94V-2 |
Gender | Female |
Termination Interface: Style | Crimp or Compression |
