Molex

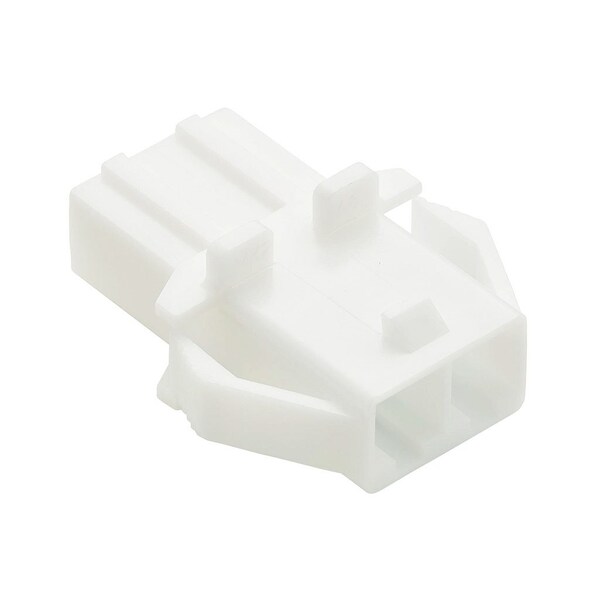

070 WW Rec HSG 2P Ear
Mfr # 35150-0210
Zoro # G4030473
Sold in multiples of 500 for $120.00
$120.00
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Circuits (maximum) 2
- Panel Mount Yes
- UL E29179
- Temperature Range - Operating -40° to +120°C
- Gender Receptacle
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 35150-0210
- Zoro # G4030473
- Country of Origin Korea, Republic of
- Category Single Straight Blade Receptacles
Details
Circuits (maximum) | 2 |
Panel Mount | Yes |
UL | E29179 |
Temperature Range - Operating | -40° to +120°C |
Gender | Receptacle |
Number of Rows | 1 |
Pitch - Termination Interface | 6.20mm |
Lock to Mating Part | Yes |
Polarized to Mating Part | Yes |
CSA | LR19980 |
Flammability | 94V-0 |
Pitch - Mating Interface | 6.20mm |
Material - Resin | PBT |
Color - Resin | Natural |
