This Product is Discontinued

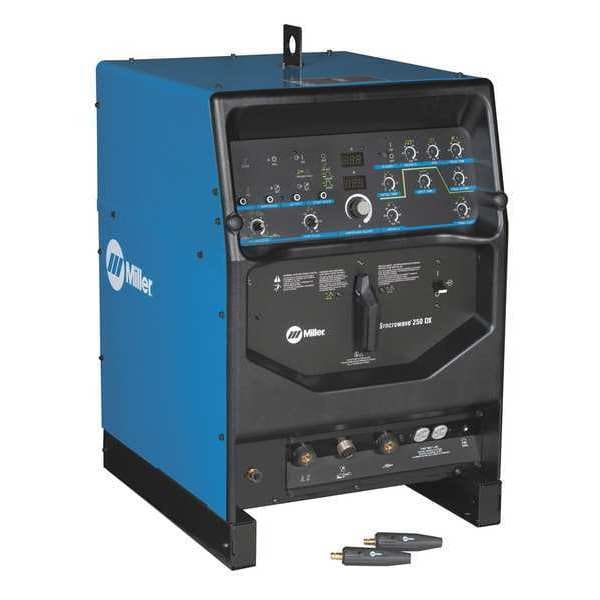

Tig Welder, Syncrowave 250 DX Series, 220 to 575V AC, 250 Max. Output Amps (Discontinued)

Mfr # 907195
Zoro # G5567235

Free Shipping & Returns

This Product is Discontinued

Shop for all TIG Welders

Key Features

Welder Industrial Class Light
Welding Processes Air Carbon Arc, Pulsed TIG, Stick, TIG
Mild Steel - Material Thickness 0.012 in to 1/2 in
Aluminum - Material Thickness 0.015 in to 3/8 in
Input Voltage 220 to 575V AC

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Miller Electric
MFR # 907195
Zoro # G5567235
UPC #
715959315364
Country of Origin United States
Category TIG Welders

Dimensions

Overall Width	22 1/2 in
Overall Height	33 1/4 in
Overall Depth	25 in

Details

Promotion Restriction	Not eligible for promotion
Welder Industrial Class	Light
Item	TIG Welder
Welding Processes	Air Carbon Arc, Pulsed TIG, Stick, TIG
Mild Steel - Material Thickness	0.012 in to 1/2 in
Aluminum - Material Thickness	0.015 in to 3/8 in
Input Voltage	220 to 575V AC
Rated Output	250A @ 30V/250 @ 28V
Welder Max. Output Amps	250
Welder Min. Output Amps	3
Welder Duty Cycle	60 %
Series	Syncrowave 250 DX
Power Source Weight	378 lb
Input (Amps)	110
Welded Material	Aluminum, Steel
Polarity	AC/DC
Application	Aerospace, Automotive, Light and Heavy Manufacturing, Maintenance and Repair, Portable Precision Metal Fabrication, Shipbuilding, Tube and Pipe
Welder Input Phase	1
Features	Adaptive Hot Start, Balance Control, Digital Welding Meters, Last Procedure Recall, Squarewave Technology, Syncro Start
Includes	(2) 50 mm Dinse style connectors, Syncrowave(R) 250 DX
Welder Input Hz	50/60
TIG Welding Output @ Duty Cycle	200 A @ 28V AC, 60%, 250 A @ 30V AC, 40%
Weight	378 lb
Power Cord Included	No
Input Frequency	50/60 Hz
Plug Type	Bare Leads
Open Circuit Voltage	80V DC
Color	Blue/Black
Stick Welding Minimum Output Current	3 A
Stick Welding Maximum Output Current	310 A
TIG Welding Minimum Output Current	3 A
For Material Type	Aluminum, Steel
TIG Welding Maximum Output Current	310 A
For Minimum Material Thickness	0.012 in (Mild Steel), 0.015 in (Aluminum)
Amperage Range	3 to 310 A
Welding Mode	CC
Max. Input Current	110 A @ 200V (Single-Phase)
Remote Control	Yes
For Maximum Material Thickness	1/2 in (Aluminum), 5/8 in (Mild Steel)
Stick Welding Output @ Duty Cycle	200 A @ 28V AC, 60%, 250 A @ 30V AC, 40%
Model	907195
Rated Output at Duty Cycle (TIG)	200 A @ 60%, 250 A @ 40%
Max. Amperage Range (TIG)	Greater than 300 A
Kit Includes	Power Source Only
brand-mfr model	MILLER ELECTRIC - 907195
Process	Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage (Nominal)	240V, 575V
Welder Kit Type	Power Source Only

Description

TIG Welder, For Material Type Aluminum, Steel, For Maximum Material Thickness 1/2 in (Aluminum), 5/8 in (Mild Steel), For Minimum Material Thickness 0.012 in (Mild Steel), 0.015 in (Aluminum), Input Frequency 50/60 Hz, Max. Input Current 110 A @ 200V (Single-Phase), Phase Single-Phase, Polarity AC/DC, Series Syncrowave 250 DX, Stick Welding Maximum Output Current 310 A, Stick Welding Minimum Output Current 3 A
