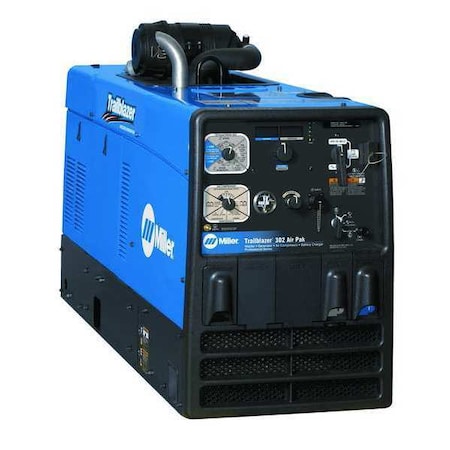

Engine Driven Welder, Trailblazer 302 Air Pak Series, Electric Start, 27 hp, Gas, 13,000 W Peak

Mfr # 907549003
Zoro # G5567305

$23,581.99

Item requires special delivery charges. A $1,100.00 per item surcharge will be applied.

Free 30-Day Returns

Key Features

Promotion Restriction Not eligible for promotion
Series Trailblazer 302 Air Pak
Start Type Electric
Rated Output CC/AC 200A @ 25V, 60%
Rated Output CC/DC 280A @ 32V, 100%

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Miller Electric
MFR # 907549003
Zoro # G5567305
UPC #
715959577649
Country of Origin United States
Category Welder Generators

Dimensions

Height	28 in
Depth	59 39/64 in
Width	20 in
Overall Width	20 in
Overall Height	34.5 in
Overall Depth	59.63 in

Details

Promotion Restriction	Not eligible for promotion
Item	Engine-Driven Welder
Series	Trailblazer 302 Air Pak
Start Type	Electric
Rated Output CC/AC	200A @ 25V, 60%
Rated Output CC/DC	280A @ 32V, 100%
Amperage Range	10 to 300
Continuous Auxiliary Power	11,000 W
Peak Auxiliary Power	13,000 W
Engine Brand	Kohler
HP	27 hp
Fuel Type	Gas
Includes	Air Cooler with Separator, Electronic Fuel Pump, GFCI Receptacles
Phase	Single-Phase
Welding Processes	Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Application	Boat / Yacht, Construction, Farm and Ranch, High Purity Processing, Infrastructure, Shipbuilding
Standards	CSA Certified
TIG Arc Start Feature	Lift Arc Start
Stick Welding Minimum Output Current	10 A
Remote Connection Type	14-Pin (Miller)
MIG Welding Maximum Output Current	350 A
Polarity	AC/DC
TIG Welding Maximum Output Current	300 A
Fuel Tank Capacity Range	10 gal - 20 gal
Rated Output at Duty Cycle (Stick)	280 A @ 100%
Weight	771 lb
MIG Welding Output @ Duty Cycle	300 A @ 32 V, 100%, 350 A @ 32 V, 60%
TIG Welding Output @ Duty Cycle	280 A @ 32 V, 100%
Oil Capacity	1 3/4 qt
Welder Type	with GFCI Receptacles
Fuel Tank Capacity	12 gal
Air Compressor Delivery	22 CFM @ 2400 RPM (Idle), 28 CFM @ 3000 RPM, 31 CFM @ 3600 RPM
TIG Welding Minimum Output Current	10 A
Stick Welding Maximum Output Current	300 A
Generator Outlets	20 A 120V GFCI 5-20R (4), 50 A 120/240V 14-50R
Stick Welding Output @ Duty Cycle	280 A @ 32 V, 100%
Engine Model	Kohler CH750
Welding Mode	CC/CV
For Material Type	Aluminum, Stainless Steel, Steel
Circuit Breaker	Yes
Generator Outlet Type	14-50R, 5-20R
Color	Blue
Horsepower	27 hp
Maximum Pressure - Air Compressor	160 psig
Sound Level	73.4 dB (Idle), 81.2 dB (Weld)
Max. Amperage Range (Stick)	150 A - 300 A
Horsepower Range	15 hp - 30 hp
Generator Fuel Type	Gasoline
Model	907549003
Process	Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
brand-mfr model	MILLER ELECTRIC - 907549003
Welder Model Type	with GFCI Receptacles

Description

Engine-Driven Welder, Color Blue, For Material Type Aluminum, Stainless Steel, Steel, Generator Fuel Type Gasoline, MIG Welding Maximum Output Current 350 A, MIG Welding Output @ Duty Cycle 300 A @ 32 V, 100 Percent, 350 A @ 32 V, 60 Percent, Phase Single-Phase, Polarity AC/DC, Start Type Electric, Stick Welding Maximum Output Current 300 A, Stick Welding Minimum Output Current 10 A, Stick Welding Output @ Duty Cycle 280 A @ 32 V, 100 Percent, TIG Welding Maximum Output Current 300 A
