Micromag

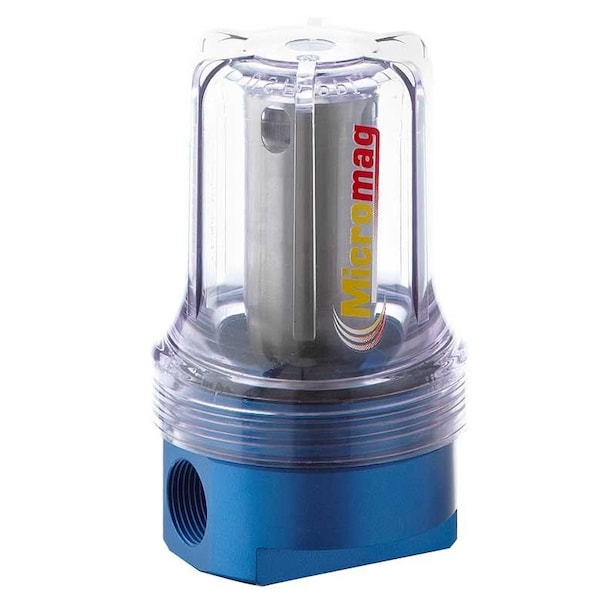

MicroMag 5" Magnetic Filter with Aluminum base and SAN bowl
Mfr # MM5/1.0
Zoro # G303446168
product price: $897.99
/ea
Free Shipping & Returns
$897.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Size 5"
- Connection 1.0" NPT
- Flow Rate 18 GPM
- Operating Pressure 174 PSI
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Micromag
- MFR # MM5/1.0
- Zoro # G303446168
- Country of Origin China
- Category Machine Filters
Dimensions
Size | 5" |
Details
Connection | 1.0" NPT |
Flow Rate | 18 GPM |
Operating Pressure | 174 PSI |
Description
How Micromag Works
Contaminated fluid enters the inlet port where flow
is equally split via tapered radial flow channels which
lowers the flow velocity ready for the fluid to be
filtered.
It then passes up the outside of the centrally mounted
‘Rare Earth’ magnetic core where contamination
particles are attracted and retained.
The magnetic flux circuit geometry ensures a controlled
build up of contamination so the filter can never block.
Filtered fluid then flows through slots at the top of the
core then down and through the centre of the core,
exiting through the outlet port.
Cleaning
Using the supplied cleaning tool, a fully contaminated
core can be cleaned in under 30 seconds. Only metallic
particles are removed from the filter and these can be
easily disposed. There are no dirty cartridges!
Installation Location
Pre or post pump, delivery line or pre membrane
cartridge.
Flow Rate: 18GPM
Operating Pressure 174 PSI
1” NPT Connection
Temperature Rage 41-122°
SAN Housing, Aluminum Lid
Performance
Magnetic Performance High intensity
Circuit Design Open
Magnetic Material Rare Earth Neodymium Iron Boron
Magnet Grade N45 – Inspected & confirmed via hystergraph prior to use
Materials
Housing Styrene Acrylo Nitrile (SAN)
Lid Marine grade Aluminum, anodised blue
Magnetic Core 304 Grade Stainless Steel
Sealing Viton O-ring
Benefits:
• Medium pressure
• Sub-micron filtration
• Large holding capacity
• High intensity ‘Rare-Earth’ magnetic material
• Clear bowl
• Suitable for all machining applications
• Environmentally responsible
• No consumables
Contaminated fluid enters the inlet port where flow
is equally split via tapered radial flow channels which
lowers the flow velocity ready for the fluid to be
filtered.
It then passes up the outside of the centrally mounted
‘Rare Earth’ magnetic core where contamination
particles are attracted and retained.
The magnetic flux circuit geometry ensures a controlled
build up of contamination so the filter can never block.
Filtered fluid then flows through slots at the top of the
core then down and through the centre of the core,
exiting through the outlet port.
Cleaning
Using the supplied cleaning tool, a fully contaminated
core can be cleaned in under 30 seconds. Only metallic
particles are removed from the filter and these can be
easily disposed. There are no dirty cartridges!
Installation Location
Pre or post pump, delivery line or pre membrane
cartridge.
Flow Rate: 18GPM
Operating Pressure 174 PSI
1” NPT Connection
Temperature Rage 41-122°
SAN Housing, Aluminum Lid
Performance
Magnetic Performance High intensity
Circuit Design Open
Magnetic Material Rare Earth Neodymium Iron Boron
Magnet Grade N45 – Inspected & confirmed via hystergraph prior to use
Materials
Housing Styrene Acrylo Nitrile (SAN)
Lid Marine grade Aluminum, anodised blue
Magnetic Core 304 Grade Stainless Steel
Sealing Viton O-ring
Benefits:
• Medium pressure
• Sub-micron filtration
• Large holding capacity
• High intensity ‘Rare-Earth’ magnetic material
• Clear bowl
• Suitable for all machining applications
• Environmentally responsible
• No consumables
