Shop All Sensor Cordsets & Receptacles
Metz Connect

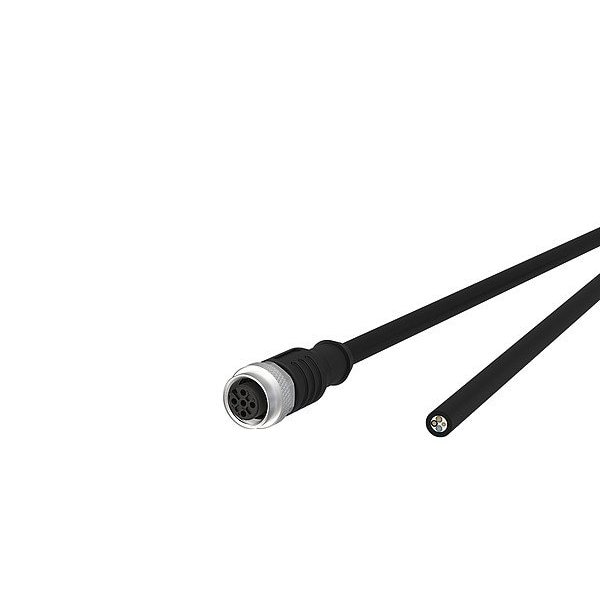

Sensor Cable, Jacket Black, 16.4 ft L
Mfr # 142MCA20050
Zoro # G808656376
product price: $34.89
/ea
$34.89
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Cable Length 5 m
- End 1 Number of Pins 4
- Max. Voltage 60 V DC
- Wire Size 22 AWG/42 AWG
- End 1 Connection Type M12
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Metz Connect
- MFR # 142MCA20050
- Zoro # G808656376
- UPC # 4251394646961
- Country of Origin Germany
- Category Sensor Cordsets & Receptacles
Dimensions
Cable Length | 5 m |
Wire Size | 22 AWG/42 AWG |
Details
Item | Sensor Cable |
End 1 Number of Pins | 4 |
Max. Voltage | 60 V DC |
End 1 Connection Type | M12 |
End 2 Connection Type | Free End |
Maximum Operating Temperature | 194 Degrees F |
Cable Type | Round |
For Use With | Sensor/Actuator |
Standards | CSA Certified, cULus, UL, UL10493/20549 |
IP Rating | IP6X, IPX5, IPX7, IPX8 |
Cable Jacket Material | PUR |
Number of Wires | 4 |
Features | Acid and Alkali Resistant, Drag Chain Resistant, Flame Retardant, Flexible, Silicone and Halogen-Free Control Cable with High Mechanical Strength, Halogen Free, Hydrolysis Proof, Labs Free, Oil Resistant, Ozone Resistant, Recyclable, RoHS Compliant, Seawater Resistant, Silicone Free, The Cable is Resistant to Chemicals, Hydrolysis and Microbes, the Drag-Chain Application is Possible at a Bending Radius of Minimum 10xd, Torsion Resistant, UV Resistant, Welding Sparks Resistant |
Max. Amps | 4 A |
Shielded | No |
Cable Jacket Color | Black |
Minimum Operating Temperature | -58 Degrees F |
End 1 Mounting Orientation | Straight |
End 1 Gender | Male |
Cordset Type | Single-Ended |
Description
Sensor Cable, End 1 Gender Male, End 1 Number of Pins 4, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Gender Not Applicable, End 2 Mounting Orientation Not Applicable, End 2 Number of Pins Not Applicable, End 2 Connection Type Free End, Cable Length 5 m, Cable Jacket Color Black, Cable Jacket Material PUR, Max. Amps 4 A, Wire Size 22 AWG/42 AWG, Maximum Operating Temperature 194 Degrees F, Minimum Operating Temperature -58 Degrees F, IP Rating IP6X, IPX5, IPX7, IPX8
