Shop All Hazardous Location Receptacles
Meltric

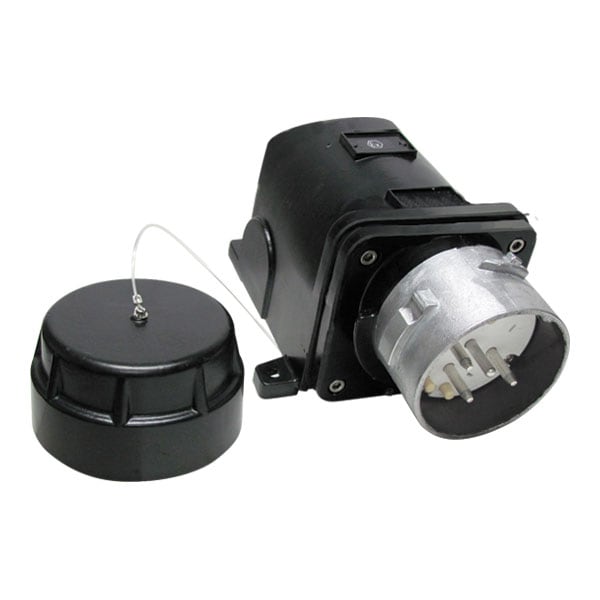

26-66043-112 INLET/BOX
Mfr # 26-66043-112
Zoro # G001756071
Free Shipping & Returns
$1,064.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Material Metal
- Color Black
- Wiring Capacity 6 AWG - 1/0 AWG
- Impact Rating IK10
- Contact Configuration 3P+G
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Meltric
- MFR # 26-66043-112
- Zoro # G001756071
- UPC # 784474625289
- Country of Origin United States
- Category Hazardous Location Receptacles
Dimensions
Thread Size | 1 1/2" NPT |
Accessory Size | 9 |
Details
Material | Metal |
Color | Black |
Wiring Capacity | 6 AWG - 1/0 AWG |
Impact Rating | IK10 |
Contact Configuration | 3P+G |
Number of Notch Positions | 12 |
Load Break, Abnormal Overload | 90 |
Keying Position | 44996 |
Maximum Operating Temperature | 140F (60C) |
Rated Current | 60A |
Primary IP Rating | 65 |
Cable Range | 1.250-1.812 in |
Voltage Color Code | Red |
Metal Type | Aluminum painted |
Phase Terminal Tightening Torque | 26 IN-LBS / 3 N-M |
Phase Terminal Type | Screw terminal |
Phase Cond. Strip Len. | 1-1/16 in (27 mm) |
Short Circuit Rating | 10 KA - MAKE & WITHSTAND |
Frequency | 60 Hz |
Rated Voltage | 480 VAC |
Load Break, Normal Operation | 60 |
Minimum Operating Temperature | -40F (-40C) |
Description
DX60 INLET/BOX METAL BLACK SIZE 9 IP 65 3P+G 60A 480 VAC 60 Hz 1 1/2" NPT 1.250-1.812 in
