Mastervolt

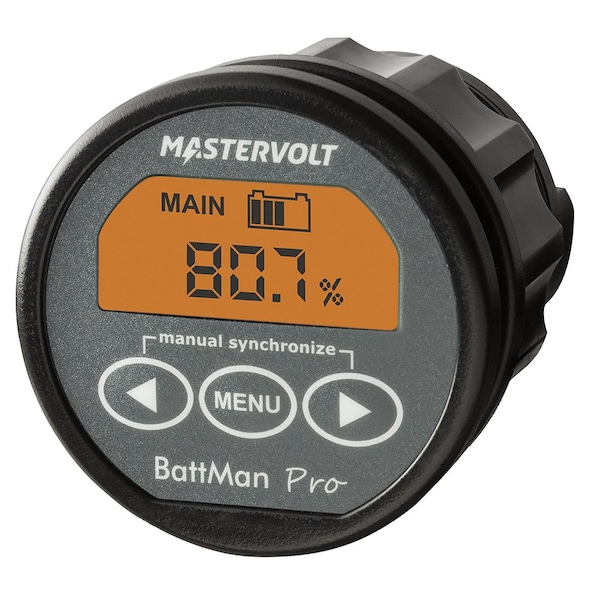

BattMan Pro Battery Monitor, 12/24V
Mfr # 70405070
Zoro # G610634258
Free Shipping & Returns
$293.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Mastervolt
- MFR # 70405070
- Zoro # G610634258
- Country of Origin Netherlands
- Category Marine & Boat Speakers & Navigation
Description
BattMan Pro Battery Monitor - 12/24V Battery monitor, 12/24 V DC with large, splash-proof display IP65 and power bar. Displays remaining time and stores special battery status events. An affordable battery monitor that does exactly that: providing critical information about the status of your battery bank under all circumstances. Moreover, it will warn you when your battery bank is empty. Also displays the remaining time until your battery needs to be charged and stores special battery status events. General Specifications: Number of battery outlets: 2; service fully, starter voltage Display/read-out: Voltage, current, amp-hours, battery capacity in % Languages on display: Universal Built-in depth: 72.5 mm/2.9 inch Dimensions: 64 mm, depth 79 mm Dimensions shunt, height x width x depth: 87 x 45 x 35 mm/3.4 x 1.8 x 1.4 inch Weight: 0.15 kg/0.3 lb Technical Specifications: Max. Ah capacity: 9999 Ah Supply voltage: 9-35 V Voltage range: 0-35 V Current consumption backlight off: 8 mA/12 V, 6 mA/24 V Current consumption backlight on: 30 mA/12 V, 18 mA/24 V Voltage resolution: 0.1 V Voltage accuracy: ± 0.3% Shunt specification: 500 A/50 mV service set Current measurement range: 0-500 A Current accuracy: ± 0,4 % Battery alarm contact: Yes, potential free Remaining time indication: Yes Historical data: Yes MasterBus compatible: No Connection cable 6-wire necessary: Yes Modular cable necessary: No
