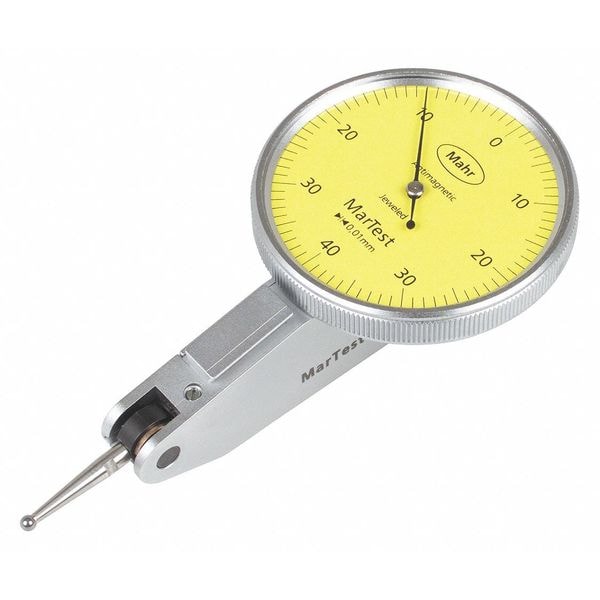

Dial Test Indicator, 38mm Dial Size

Mfr # 4307200
Zoro # G5529583

$149.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Graduations 0.01 mm
Range 0 mm to 0.4 mm
Features Shockproof; Anti Magnetic; Automatic Matching to Sense Direction; Dial Face is Sealed With O-Ring
Accuracy +/-0.01 mm
Includes Instruction Manual, Mounting Shaft, Spanner

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Mahr
MFR # 4307200
Zoro # G5529583
Country of Origin Czechia
Category Dial Indicators

Dimensions

Contact Point Length	13.5mm
Dial Size	38 mm
Contact Point Dia.	2 mm
Stylus Length	14.5 mm
Stem Thread Size	M3
Dimension Type	Metric

Details

Graduations	0.01 mm
Range	0 mm to 0.4 mm
Features	Shockproof; Anti Magnetic; Automatic Matching to Sense Direction; Dial Face is Sealed With O-Ring
Accuracy	+/-0.01 mm
Includes	Instruction Manual, Mounting Shaft, Spanner
Indicator Style	Vertical
Contact Point Style	Ball
Reading	Balanced
Bearing Type	Jeweled
Series	MarTest 800 SG-R
Dial Reading	40-0-40
Item	Horizontal Dial Test Indicator
Dial Color	Yellow
Range per Revolution	0.8 mm
Standards	DIN 2270
Long Form Calibration Certificate	No
Maximum Measurement - mm	0.4 mm
Operation Type	Lever-Style
Includes Dovetail Mount Attachments	Yes
Includes Case	Yes
Minimum Measurement - mm	0 mm
Contact Point Shape	Ball
Included Certification	Certificate of Conformance
Non-Magnetic Tip	Yes
Number of Indicators	1
Swivel Angle	110 Degrees
Hysteresis	3 micronm
Shock Resistant	Yes
Max. Measuring Force	0.15 N
Case Type	Case
Mounting Style	Dovetail
Repeatability	+/-0.003 mm
Test Indicator Style	Horizontal
Contact Point Material	Carbide
Non-Conductive Tip	No

Description

Item Horizontal Dial Test Indicator, Range 0 mm to 0.4 mm, Graduations 0.01 mm, Long Form Calibration Certificate No, Contact Point Dia. 2 mm, Dial Color Yellow, Dial Reading 40-0-40, Dial Size 38 mm, Dimension Type Metric, Included Certification Certificate of Conformance, Includes Dovetail Mount Attachments Yes, Maximum Measurement - mm 0.4 mm, Minimum Measurement - mm 0 mm, Number of Indicators 1, Operation Type Lever-Style, Range per Revolution 0.8 mm, Series MarTest 800 SG-R
