Madison

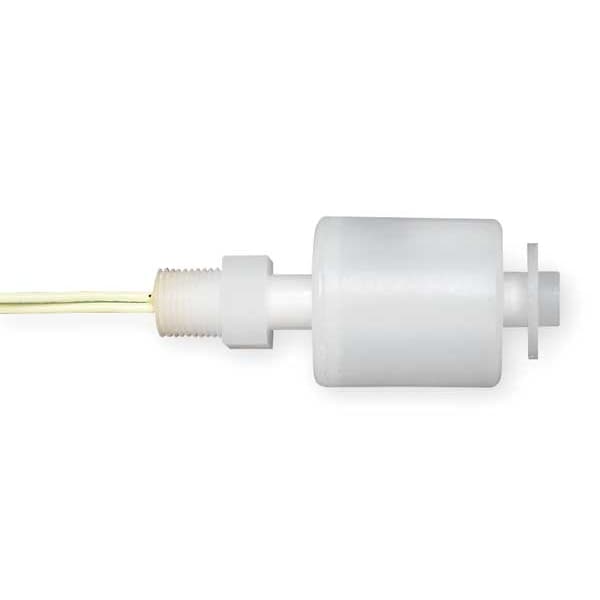

SPST Liquid Level Switch Selectable 240VAC 15 psi
Mfr # M9000
Zoro # G1595212
original price:
$27.67
9% off
$25.15
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Voltage 240VAC
- Max. Pressure 15 psi
- Max. Voltage 240 V
- Mounting Vertical Open Tank
- Conduit Size 1/8 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Madison
- MFR # M9000
- Zoro # G1595212
- Country of Origin United States
- Category Level Switches
Dimensions
Conduit Size | 1/8 in |
Overall Length | 2.25 in |
Tank Connection Size | 1/8 in NPT |
Float Dia. | 1.0 in |
Float Length | 1 in |
Height | 2.25 in |
Width | 1 in |
Stem Length | 1.63 in |
Overall Width | 1 in |
Overall Height | 2.25 in |
Stem Thread Size | 1/8 in NPT |
Float Diameter | 1 in |
Description
Closed Liquid Level Switch, Switch Function Selectable, Vertical Open Tank Mounting, Tank Connection Size 1/8 in NPT, Max. Pressure 15 psi, VA Rating 30, Operating Temp. Range 221 Degrees F Max, Overall Length 2.25 in, Float Material Kynar, Float Length 1 in, Float Dia. 1.0 in, Stem Material Kynar, Stem Length 1.63 in, Height 2.25 in, Width 1 in, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material Kynar, Conduit Size 1/8 in, Standards CE, NSF, UL Listed
