Shop All Level Switches
Madison

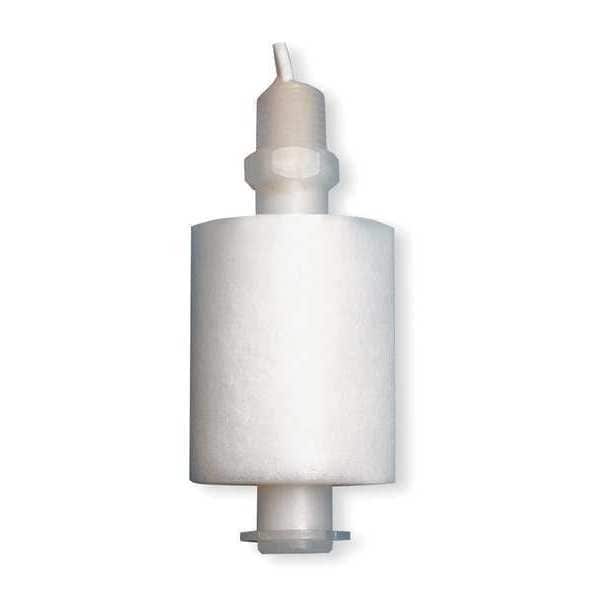

SPST Liquid Level Switch Selectable 240VAC 100 psi
Mfr # M8800
Zoro # G1703852
$50.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Voltage 240VAC
- Max. Pressure 100 psi
- Switch Function Selectable
- Max. Voltage 240 V
- Max. Current 0.5 A
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Madison
- MFR # M8800
- Zoro # G1703852
- UPC # 094701043206
- Country of Origin United States
- Category Level Switches
Dimensions
Conduit Size | 1/4 in |
Overall Length | 3.38 in |
Float Dia. | 1.5 in |
Height | 3.41 in |
Tank Connection Size | 1/4 in NPT |
Width | 1.5 in |
Stem Length | 2.68 in |
Float Length | 2 in |
Overall Width | 1.5 in |
Overall Height | 3.41 in |
Stem Thread Size | 1/4 in NPT |
Float Diameter | 1.5 in |
Description
Alternator Closed Liquid Level Switch, Switch Function Selectable, Vertical Open Tank Mounting, Tank Connection Size 1/4 in NPT, Max. Pressure 100 psi, VA Rating 60, Operating Temp. Range 221 Degrees F Max, Overall Length 3.38 in, Float Material Polypropylene, Float Length 2 in, Float Dia. 1.5 in, Stem Material Polypropylene, Stem Length 2.68 in, Height 3.41 in, Width 1.5 in, Contact Form SPST, Max. Current 0.5 A, Max. Voltage 240 V, Body Material Polypropylene, Float Rod Angle Vertical
