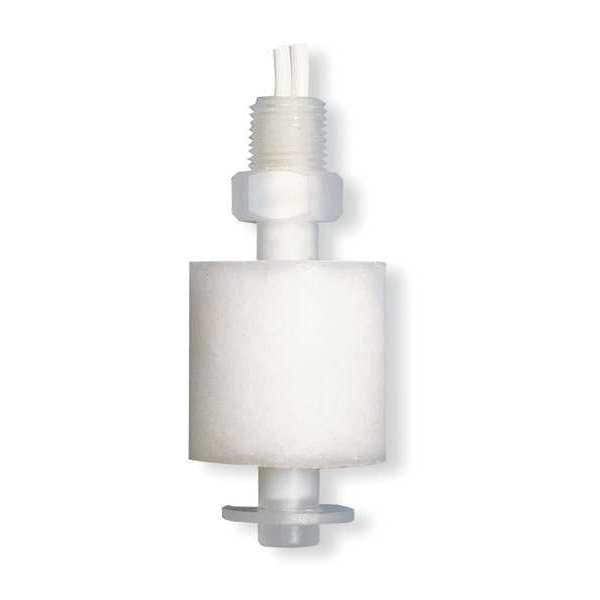

SPST Liquid Level Switch Selectable 240 VAC 100 PSI
Mfr # M8000
Zoro # G2923024
product price: $13.55
/ea
$13.55
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Voltage 240VAC
- Max. Pressure 100 psi
- Switch Function Selectable
- Conduit Size 1/8 in
- Float Switch Contact Form SPST
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Madison
- MFR # M8000
- Zoro # G2923024
- Country of Origin United States
- Category Level Switches
Dimensions
Conduit Size | 1/8 in |
Overall Length | 2.25 in |
Float Dia. | 1.0 in |
Height | 2.25 in |
Width | 1 in |
Float Length | 1 in |
Tank Connection Size | 1/8 in NPT |
Stem Length | 1.63 in |
Overall Width | 1 in |
Overall Height | 2.25 in |
Float Diameter | 1 in |
Stem Thread Size | 1/8 in NPT |
Description
Alternator Closed Liquid Level Switch, Switch Function Selectable, Vertical Open Tank Mounting, Tank Connection Size 1/8 in NPT, Max. Pressure 100 psi, VA Rating 30, Operating Temp. Range 221 Degrees F Max, Overall Length 2.25 in, Float Material Polypropylene, Float Length 1 in, Float Dia. 1.0 in, Stem Material Polypropylene, Stem Length 1.63 in, Height 2.25 in, Width 1 in, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material Polypropylene, Float Rod Angle Vertical
