Shop All Motion Control Couplings
Lovejoy

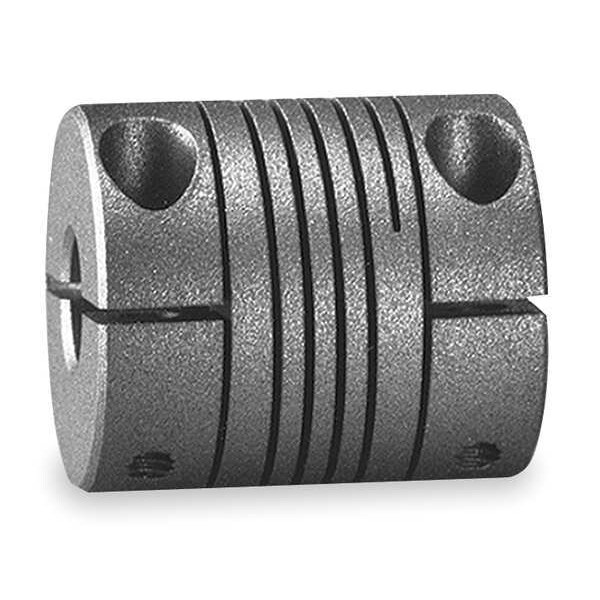

Coupling, Single Beam, Bore 1/4x1/4 In
Mfr # EC075 1/4x1/4
Zoro # G1365472
product price: $122.99
/ea
Free Shipping & Returns
$122.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Shaft Locking Type - Couplings 1 Piece Clamp
- Bore Dia. 1/4 in x 1/4 in
- Rated Torque 5 in-lb
- Max. RPM 10,000 RPM
- Outside Dia. 0.748 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Lovejoy
- MFR # EC075 1/4x1/4
- Zoro # G1365472
- UPC # 685144566324
- Country of Origin United States
- Category Motion Control Couplings
Dimensions
| Bore Dia. | 1/4 in x 1/4 in |
| Outside Dia. | 0.748 in |
| Overall Length | 3/4 in |
| Size | EC075 |
| Screw Size (mm) | M2.5 |
| Outside Dia. (mm) | 19 |
| Screw Size (In.) | 4-40 |
| Length through Bore (In.) | 0.236 |
| Overall Length (In.) | 0.906 |
| Hub Dia. | 0.748 in |
| Outside Dia. (In.) | 0.748 |
| Screw Size | #4-40 |
| Length through Bore (mm) | 6.00 |
| Length through Bore | 0.236 in |
| Overall Length (mm) | 23 |
| Length Through Bore 2 | 0.2 in |
| Maximum Bore Diameter | 15/64 in |
| Bore Diameter 2 | 5/32 in |
| Screw Thread Size | #8-32 |
| Coupling Outside Diameter | 3/4 in |
| Different Bore Sizes | No |
| Minimum Bore Diameter | 5/32 in |
| Length Through Bore 1 | 0.2 in |
| Bore Diameter 1 | 15/64 in |
Description
Motion Control Coupling, Angular Misalignment 5 Degrees , Bore Diameter 1 15/64 in, Bore Diameter 2 5/32 in, Coupling Material Aluminum, Coupling Outside Diameter 3/4 in, Maximum Speed 10,000 RPM, Maximum Torque 5 in-lb, Axial Motion 0.01 in, Overall Length 3/4 in, Parallel Misalignment 0.005 in, System of Measurement Inch, Different Bore Sizes No, Torsional Stiffness 119.4 in-lb/rad, Shaft Locking Type Clamp On, Number of Beams 1
