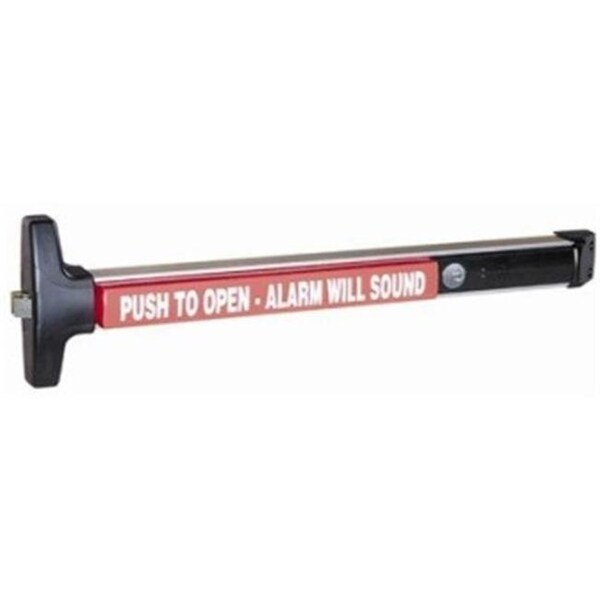

Lockey V-40-EB-CD-48 Detex Panic Bar With Alarm Cylinder Dogging - 48 in.

The DETEX's newest innovations in life safety and security door hardware and is recognized as a best-in-class provider of life safety and security products, worldwide. Lockey USA offers DETEX products and manufactures DETEX compatible keyless trims, combining two world-class brands to create one-of-a-kind panic exit configurations that offer maximum safety and security. The V-40-EB-CD-48 in. Series of rim exit devices offers secure and durable panic and fire exit hardware at an affordable price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of any available panic hardware.

• Priced to be the best value for durable and attractive loss prevention and panic hardware.
• Fast and easy installation.
• Minimal door prep saves time and money.
• Fits almost any door and décor.
• Outside trims are easily changed or rekeyed without removing device from door.

• Door Types: Wood, Hollow, Metal, Fiberglass or Aluminum.
• Door Thickness: Fits standard 1 3/4 in. - 2 1/4 in.
• Door Stile: Fits 2 1/2 in. stile doors with 99 surface strike standard.
• Door Stile: Fits 2 in. narrow stile doors with NS option or NSK door kit.
• Machine and self-drilling screws standard.

• W Weatherproof.
• HD Hex Dogging.
• 6 Fits 48 in. Door Width.
• 99 Surface Strike.

• EB Exit alarm with 9-volt battery.

• NS Narrow stile door opening.
• CD Cylinder Dogging.
• 48 Fits 48 in. Door Width.

• Patented mounting plate and strike locator.
• Covers a 161 door prep.
• Stainless steel, 3/4 in. deadlocking Pullman-type latch bolt.
• Non-handed.
• Field sizeable.
• 1/8 turn hex key dogging.
• Heavy-duty angled end cap.
• High impact ABS anodized surfaces.
• Withstands over 1,400 lbs. of static pull force for enhanced security.
• Modular design accepts a variety of outside trims and functions.
• Standard and narrow stile pull trims available.
• Finish - Aluminum 628 - Standard.
