  9. Drum Valve, 4 Pin, SS, 2In. Female Buttress
Shop All Fuel Transfer Accessories
Liquidynamics

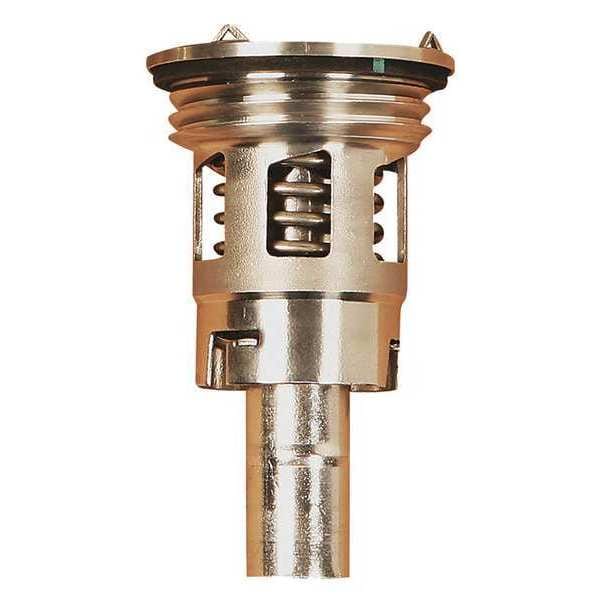

Drum Valve, 4 Pin, SS, 2In. Female Buttress

product price: $81.59
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • For Use With 105205-46, 195205-32,195205-40, 195205A, 195205D
  • Wetted Materials EPDM, Stainless Steel
  • Adapter Type 2" Female Buttress
  • Agency Compliance ISO 222241-3
  • Overall Length 5 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Overall Length 5 in
Downtube Length 32 in, 40 in, 46 in
Valve Thread Dia. 2 1/2 in

Details

Item Drum Valve
For Use With 105205-46, 195205-32,195205-40, 195205A, 195205D
Wetted Materials EPDM, Stainless Steel
Adapter Type 2" Female Buttress
Agency Compliance ISO 222241-3
Features 4 Key
Seal Material EPDM
Diesel Exhaust Fluid Compatible Yes
Food Grade No
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Max. Fluid Temp. 104 Degrees F
Compatible Chemicals Acetic Acid 20%, Ammonium Hydroxide, Antifreeze (Coolant), Citric Acid 50%, DEF, Deionized Water, Ethyl (Ethanol), Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropyl (Isopropanol), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%)
Min. Fluid Temp. 17 Degrees F
Valve Thread Type Buttress
Not Recommended Chemicals Acetic Acid (Glacial), Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, Diesel Fuel, E85, Ethyl Acetate, Fertilizers, Formic Acid, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Body Material Stainless Steel
Gear Lube NT
Grease NT

Description

Drum Valve, Valve Thread Dia. 2 1/2 in, Valve Thread Type Buttress, Body Material Stainless Steel, Seal Material EPDM, Wetted Materials EPDM, Stainless Steel, Max. Fluid Temp. 104 Degrees F, Min. Fluid Temp. 17 Degrees F, Downtube Length 32 in, 40 in, 46 in, Overall Length 5 in, Diesel Exhaust Fluid Compatible Yes, Food Grade No, Features 4 Key, For Use With 105205-46, 195205-32,195205-40, 195205A, 195205D, Agency Compliance ISO 222241-3
