Shop All Switch Accessories
Linemaster

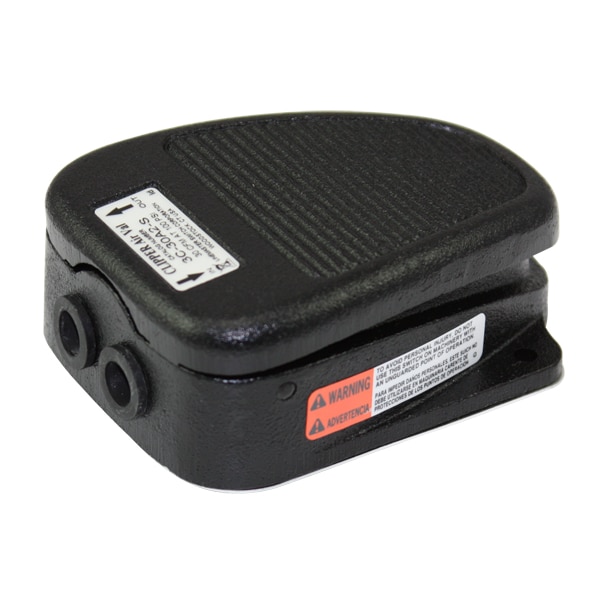

Clipper Pneumatic Airval, 2Way Momentary

product price: $89.45
/ea
Sold in multiples of 10 for $894.50
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Switch Type Pneumatic Airval
  • Actions Momentary
  • PURPOSE Medium Duty General Purpose Design
  • Housing Materials Cast Iron
  • Input & Output Ports 1/8"-27 NPT Ports - Within Housing
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Details

Item Clipper Pneumatic Airval, 2Way Momentary
Switch Type Pneumatic Airval
Actions Momentary
PURPOSE Medium Duty General Purpose Design
Housing Materials Cast Iron
Input & Output Ports 1/8"-27 NPT Ports - Within Housing
MATERIALS Internal Valve is constructed of a Non-Ferrous body, Stainless steel plunger and Teflon coated buna-N O-rings Air flows when plunger is depressed, stops flowing when plunger is released and exhausts back pressure on output side Air exhausts around plunger Operating temperature 0 to 131 °F (-18 to +55 °C) Rugged Cast Iron Housing
FEATURES & BENEFITS Designed for long life operation Nonskid Base Pad Plunger can be depressed flush with valve body without damage to valve Standard 1/8-27 N.P.T. input and output ports Filtered and lubricated air supply is required for best operation Line pressure up to 150 P.S.I. 2 holes provided for rigid mounting to floor or equipment Two-way models do not exhaust back pressure
Housing Colors Black
Pneumatic Valves 2-Way Air Valve

Description

Clipper Pneumatic Airval, 2Way Momentary
