  9. Prsm wll mnt 1pak Mrv14, Dl flx 13ft arms
Shop All Fume Extractors & Accessories
Lincoln Electric

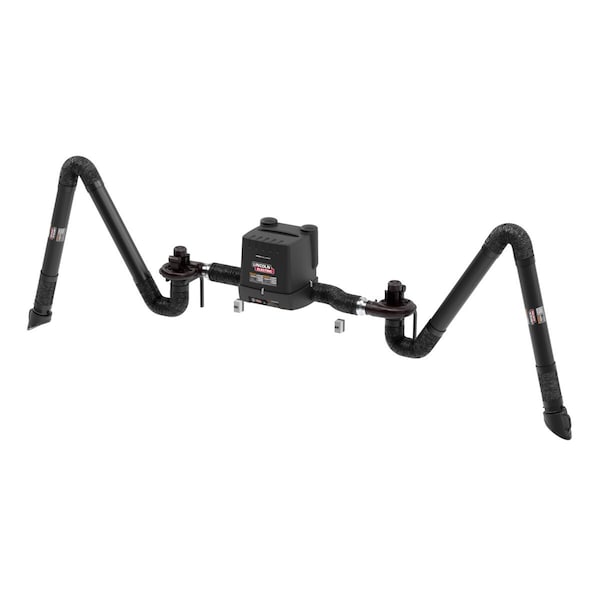

Prsm wll mnt 1pak Mrv14, Dl flx 13ft arms

product price: $10,559.99
/ea
Item requires special delivery charges. A $155.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Input Voltage 115V AC
  • Series Prism
  • Includes (2) K1494-2 Starter Overload Switch, (2) K1656-9 Prism 2400 1 HP Fan, (2) K1657-1 Wall Mounting Bracket, Filter, K1654-5 Base Unit, KP1673-1, KP1673-5, MERV 14, Pre-Filter, Prism Mobile and Prism Wall Mount
  • Features 3-D Pleated Filter Structure, Flexible Single Arm Configuration to Meet Application Requirements, Generously Sized Filters Allow for Lower Operational Costs, Reduction of Dust and Dirt in Operator Work Environment, Spark Arrestor Functions as a Pre-Filter for Larger-Sized Particulate
  • Filter Type Disposable Cartridge Filter, Spark Arrestor
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Housing Width 32 in
Extraction Arm Diameter 8 in
Extraction Arm Length (Maximum) 13 ft
Housing Height 36 in
Housing Depth 28 in

Details

Input Voltage 115V AC
Series Prism
Includes (2) K1494-2 Starter Overload Switch, (2) K1656-9 Prism 2400 1 HP Fan, (2) K1657-1 Wall Mounting Bracket, Filter, K1654-5 Base Unit, KP1673-1, KP1673-5, MERV 14, Pre-Filter, Prism Mobile and Prism Wall Mount
Features 3-D Pleated Filter Structure, Flexible Single Arm Configuration to Meet Application Requirements, Generously Sized Filters Allow for Lower Operational Costs, Reduction of Dust and Dirt in Operator Work Environment, Spark Arrestor Functions as a Pre-Filter for Larger-Sized Particulate
Filter Type Disposable Cartridge Filter, Spark Arrestor
Motor Horsepower (Maximum) 1 hp
Input Voltage (Nominal) 120V
Compatible Filter Manufacturer Part Number KP1673-1, KP1673-5
Weight 102 lb
Includes Extraction Arm Yes
Number of Extraction Arms 2
Process Repair Welding
Maximum Air Flow 735 cfm
Filter Area 538 sq ft
Filter MERV Rating 14
Safety Features Built-In Spark Arrestance

Description

Maximum Air Flow 735 cfm, Extraction Arm Diameter 8 in, Extraction Arm Length (Maximum) 13 ft, Filter Area 538 sq ft, Filter MERV Rating 14, Filter Type Disposable Cartridge Filter, Spark Arrestor, Input Voltage 115V AC, Motor Horsepower (Maximum) 1 hp, Series Prism, Compatible Filter Manufacturer Part Number KP1673-1, KP1673-5
