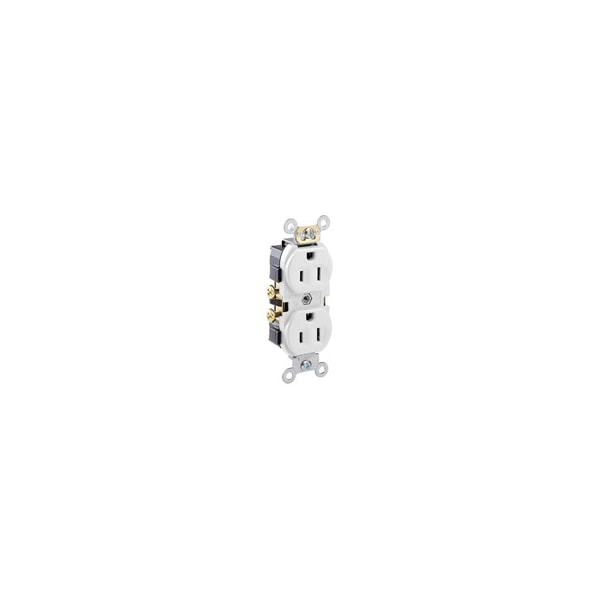

Receptacle, Duplex, 15A, 5-15R, 125V, White

Mfr # CR15-W
Zoro # G3837137

$1.89

Sold in multiples of 4 for $7.56

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Outlet Type - Plugs and Receptacles Standard Duplex
Application Environment Commercial
Mounting Type - Plugs and Receptacles Flush
Amps - Plugs and Receptacles 15
Voltage - Plugs and Receptacles 125VAC

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Leviton
MFR # CR15-W
Zoro # G3837137
UPC #
78477815205
Country of Origin United States
Category Duplex Straight Blade Receptacles

Dimensions

Height	9.2500 in
Dimensions	46 in H x 1.56 in W x 1.245 in D
Length	12.2500 in

Details

Item - Plugs and Receptacles	Receptacle
Outlet Type - Plugs and Receptacles	Standard Duplex
Application Environment	Commercial
Mounting Type - Plugs and Receptacles	Flush
Amps - Plugs and Receptacles	15
Voltage - Plugs and Receptacles	125VAC
NEMA Receptacle Configuration - Plugs and Receptacles	5-15R
Surge Suppression	No
Tamper Resistant	No
NEMA Configuration	5-15R
Phase	1
Amps	15
Color - Plugs and Receptacles	White
Mounting Type	Flush
Voltage	125VAC
Wiring Method - Plugs and Receptacles	Side
Weather Resistant	No
Amps - Plugs and Receptacles	15
Weather Resistant - Plugs and Receptacles	No
Color	White
Outlet Type	Duplex
Number of Wires	3
Description	Narrow Body
Corrosion Resistant	No
Material	Thermoplastic
Number of Poles	2
Number of Gangs	1
HP	0.5
Wiring Method	Side
Sub-Category	Duplex Receptacles
Power Indicator	No
Standards	UL Listed 498 File E13399, CSA C22.2 No. 42 File 152105, ANSI C-73, NEMA WD-1, WD-2 and WD-6, NOM 057
Type	Straight Blade;Duplex Outlet
Item	Receptacle
Terminal Screws	Steel 8-32
Device Type	Duplex Receptacle Outlet
Line Contacts	Brass Double Wipe .031 Thick
Terminal Accom.	14-10 AWG
NEMA	WD-1 & WD-6
Current Limiting	Full Rated Current
Body Material	Nylon
Grounding	Self-Grounding
ANSI	C-73
Terminal ID	Brass-Hot, Green-Ground, Silver-Neutral
Amperage	15 A
Ground Clips	Brass-Plated
Wire	3
Feature	Indented Face
Face Material	Nylon
Termination	Side Wire
UL498	File E13399
Grade	Commercial Specification Grade
Strap Material	Zinc-Plated Steel
Operating Temperature	-40°C to 60°C
At Rated Voltage	1/2 HP
Screw Terminal Torque	14-18 in-lbs
CSA C22.2 No. 42	File 152105
Dielectric Voltage	Withstands 2000V per UL498
Grounding Screw	Steel 8-32
Pole	2
Temperature Rise	Max 30C after 100 cycles OL at 150 percent rated current
Temperature Rating	-40 to +60 °C
Dielectric Strength	2000 (Min.) V
Voltage Rating	125 V
Environmental Conditions	Flammability (Rated V-2 per UL94)
Standard	NEMA (WD-2, WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399)
Terminal Type	Side Wired
Mounting	Wall Box
Connection	Side Wired

Description

15-Amp, 125-Volt, Narrow Body Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, Side Wired, White
