This Product is Discontinued

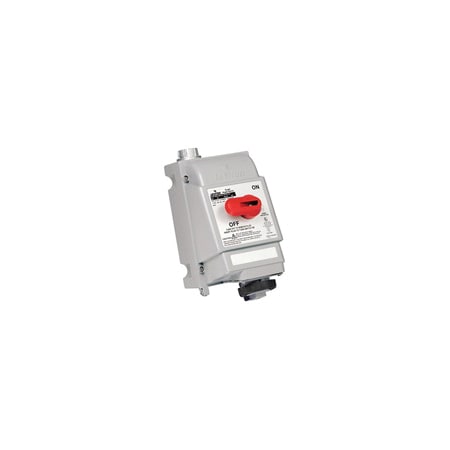

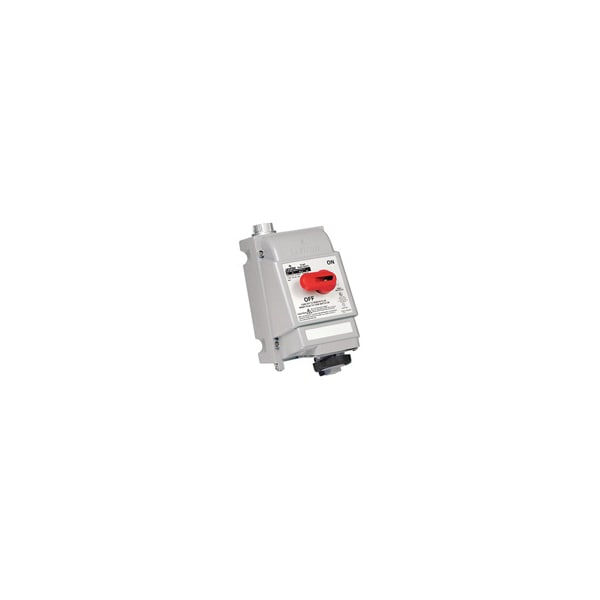

DISCONNECT SWITCH 20A 3PHASE 600V M.I. (Discontinued)

Mfr # 420MI5W
Zoro # G4464075

Free Shipping & Returns

This Product is Discontinued

Shop for all Mechanical Interlock Devices

Key Features

Voltage 600 VAC
Phase 3-Phase
IP Rating IP67/IP69K
Series Standard Series
Height 8.49 in

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Leviton
MFR # 420MI5W
Zoro # G4464075
UPC #
78477130513
Country of Origin Czechia
Category Mechanical Interlock Devices

Dimensions

Height	8.49 in
Width	6.5 in
Dimensions	12.52 in H x 8.78 in W x 8.29 in D ° C
Length	13.19 in

Details

Voltage	600 VAC
Phase	3-Phase
IP Rating	IP67/IP69K
Series	Standard Series
Material	Valox® 357
Type	Pin & Sleeve Non Fused Mechanical Interlock
Internal Screws	Zinc-plated steel
Actuator Material	Zinc-Coated Steel
Handle Material	Valox 357
Contact Carrier	Nylon
At Rated Voltage	25 HP
Pullout	18 lb pull on internal wires
IEC Rating	60309-1 and 60309-2
Locking Ring	Valox 357
Impact	1.2 lb ball dropped from 5 ft
Conduit Grounding Plate	Zinc-Coated Steel
Color	Black
Pole	3
Dielectric Voltage	1000 V plus rated voltage for 1-minute
Hosedown	Type 4X per UL 50
Flammability	Rated V-0 per UL 94
Endurance	6,000 cycles inductive motor type load
Cover Eyelet	Nickel-Plated Brass
CSA	C22.2
Switch Terminal Contacts	Brass
UL	231 & 1686
Amperage	20 A
Strength of Insulating Base and Support	110% of specified tightening torque on terminal screws
UV Resistance	Exposed plastic materials are UV stabilized
Cold Impact	Same as above, after conditioning to -35C
Rain	Type 3R per UL 50
Operating Temperature	-40°C to 60°C
Phase and Ground Sleeves	Brass
Cover Locking Mechanism	Valox 357
UL 508	Non-Fused
Crush Test	100 lbs
Gasket Material	Chloroprene
Cover with Arm	Valox 357
Current Interrupting	Certified for current interrupting at full rated current
Dust	Type 12K per UL 50
Housing Screws	Stainless Steel
Mold Stress Relief	70ºC for 7 hours
Switch Material	Reinforced Nylon
Wire	4
Switch Contacts	Cadmium-Free Silver Alloy
Device Type	Mechanical Interlock
Ground Contacts	Brass
Housing Material	Valox 357
Configuration	North American
Gasket Aging	70C for 168 hours
Application	Industrial
Enclosure	NEMA 3R/4X/12K/IP67/IP69K
Standard	UL Listed (231, 1686);UL Listed (508 Non-Fused);UL Listed (98 Fused);CSA Certified (C22.2);CE Marking (Per low voltage directives 73\23\EEC);93\68\EEC;IEC Rating (60309-1 and 60309-2)
Actuator	Cam Lever
Environmental Conditions	Flammability (0.6 V-0)

Description

20 Amp, 600 Volt 3-Phase, IEC 309-1 & 309-2, 3P, 4W, Mechanical Interlock North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight, Non-Fused - Black
