  11. COMBINATION DEVICE SWITCH COMB DPLX RCPTCL 20A TYP A-A WAL BARK
Shop All Wall Switches
Leviton

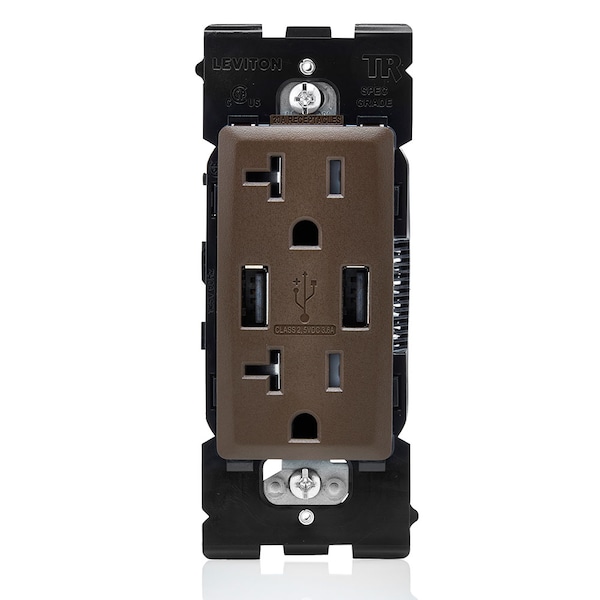

COMBINATION DEVICE SWITCH COMB DPLX RCPTCL 20A TYP A-A WAL BARK

product price: $66.75
/ea
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Color Walnut Bark
  • Grade Residential
  • Voltage 125 VAC
  • Height 9.8750 in
  • Type Type A/A Duplex Receptacle
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Height 9.8750 in
Length 11.6250 in

Details

Color Walnut Bark
Grade Residential
Voltage 125 VAC
Type Type A/A Duplex Receptacle
Terminal ID Brass-Hot Black-Hot White-Neutral Green-Gnd
Ratings 15A-125V
Flammability Rated V-0 per UL 94
Color Change Kit RKAA2
Body Material Thermoplastic
Termination Back & Side
Grounding Self-Grounding Clip and Green Ground Screw
Torque Range 14 "- 18 in.-lbs
Terminal Accom. 14-12 AWG
Cover Material Thermoplastic
Operating Temperature -10°C to 40°C
Strap Material Steel
Listed cCSAus
Horsepower Rating 15A-1/2 HP
NEMA 5-20R
Device Type USB Duplex Outlet
Amperage 20 A

Description

Combination Duplex Receptacle/Outlet and USB Charger. 20 Amp, 125 Volt, Renu Tamper-Resistant Receptacle/Outlet, NEMA 5-20R. 3.6 Amps, 5VDC, 2.0 Type A USB Chargers. Grounding, Side Wired - Back Wired - Walnut Bark
