Leonard Valve

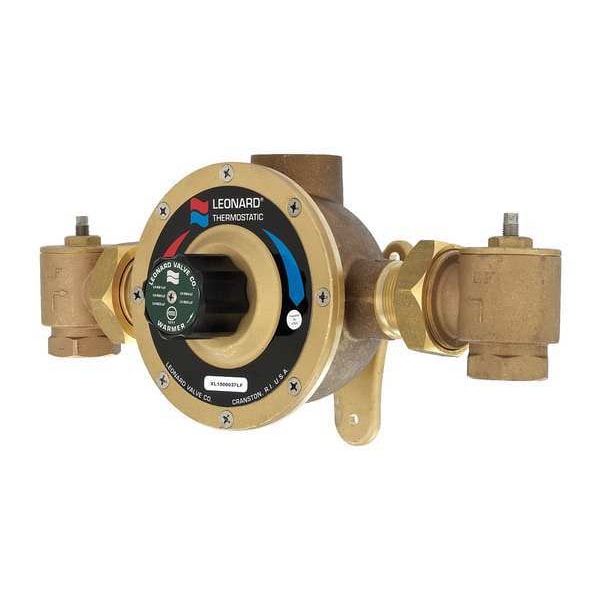

Mixing Valve, Lead Free Bronze, 86 gpm
Mfr # XL-150-LF-BDT
Zoro # G7918915
product price: $2,882.99
/ea
Free Shipping & Returns
$2,882.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Body Material Lead Free Bronze
- Flow Rate 3 to 124 gpm
- Inlet Type NPT
- Outlet Type NPT
- Inlet Size 1 1/4 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Leonard Valve
- MFR # XL-150-LF-BDT
- Zoro # G7918915
- Country of Origin United States
- Category Mixing Valves
Dimensions
| Inlet Size | 1 1/4 in |
| Outlet Size | 1 1/2 in |
| Overall Height | 6 in |
| Overall Width | 8 in |
| Connection Size - Inlet | 1 1/4 in |
| Connection Size - Outlet | 1 1/2 in |
Details
| Item | Mixing Valve |
| Body Material | Lead Free Bronze |
| Flow Rate | 3 to 124 gpm |
| Inlet Type | NPT |
| Outlet Type | NPT |
| Temp. Range | 95 Degrees to 135 Degrees F |
| Max. Pressure | 125 psi |
| Standards | ASSE 1017, Lead Free |
| For Use With | Domestic Hot Water Applications |
| Includes | Check Stop, Wall Support |
| Compliance | Lead Free |
| Inlet Temperature (Hot) | 120 Degrees to 200 Degrees F |
| Inlet Temperature (Cold) | 40 Degrees to 85 Degrees F |
| Series | XL |
Description
Mixing Valve, Body Material Lead Free bronze, Flow Rate 3 to 124 gpm, Inlet Type NPT, Outlet Type NPT, Inlet Size 1 1/4 in, Outlet Size 1 1/2 in, Temp. Range 95 Degrees to 135 Degrees F, Max. Pressure 125 psi, Overall Height 6 in, Overall Width 8 in, Inlet Temperature (Cold) 40 Degrees to 85 Degrees F, Inlet Temperature (Hot) 120 Degrees to 200 Degrees F, For Use With Domestic Hot Water Applications, Includes Check Stop, Wall Support, Standards ASSE 1017, Lead Free, Compliance Lead Free
Restrictions
