Shop All Rotary and Straight Line Laser Levels

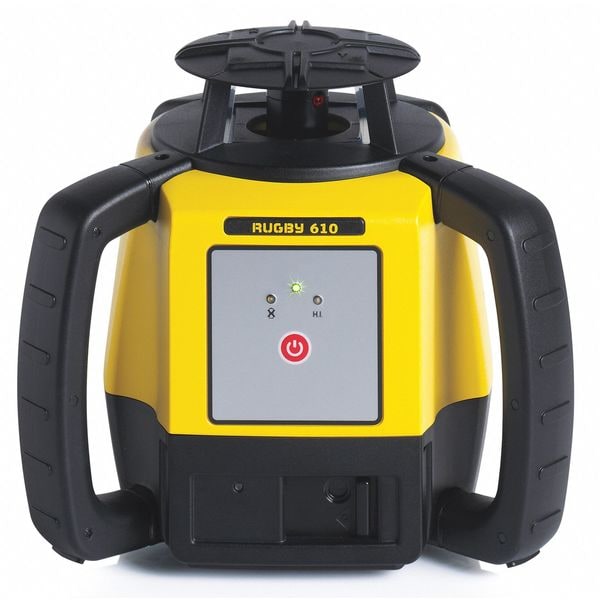

Rotary Laser Kit, Exterior Usage

Mfr # Rugby 610
Zoro # G5070438

$871.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Laser Usage Environment Exterior
Laser Projection Horizontal
Leveling Type Electronic Self-Leveling
Number of Beams 1
Number of Dots 0

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Leica Rugby
MFR # Rugby 610
Zoro # G5070438
Country of Origin China
Category Rotary and Straight Line Laser Levels

Dimensions

Length	8 in
Width	8 in
Height	8 in
Thread Size	5/8 in
Tripod Thread Size	5/8"-11
Overall Depth	8 in
Overall Height	8 in
Overall Width	8 in

Details

Item	Rotary Laser Kit
Laser Usage Environment	Exterior
Laser Projection	Horizontal
Leveling Type	Electronic Self-Leveling
Number of Beams	1
Number of Dots	0
Number of Lines	0
Laser Color	Red
Range w/o Detector	2,600 ft
Plumb Down	No
Laser Class	Class 1
Rotating Speed	10 RPM
Accuracy	+/-3/32 in @ 100 ft
Preset Angle	None
Plumb Up	No
Includes	Bracket, Case, Rod Eye 120
IP Rating	IP67
Number of Plumb Vials	0
Total Number of Vials	0
Features	Detect the Laser Beam in any Conditions and at any Distances with the Leica Rod Eye Receiver Range - from a Convenient Offset Reading with Rod Eye 120G/120 to Working at Long Distances with Rod Eye 140/160, Rugby 640G Provides Outstanding Visibility for Indoor and Outdoor Applications with New Green Beam Laser Technology, Rugby 680 Provides a Semi Automatic Grade Capability in Both Axis upto 8%, Setting Foundations and Footings has Never Been More Efficient. the Rugby 600 Series is Fit for any Interior and Exterior Levelling, Aligning and Squaring Application - Concrete Forming, Pad Placement and Framework Levelling
Power Source	(2) AA Batteries, (4) D Cell, Li-Ion Battery
Number of Scanning Modes	0
Number of Level Vials	0
Range w/Detector	2,600 ft
Auto Leveling Range	+/-5 Degrees
Number of 45 Degree Vials	0
Auto Shutoff	Yes
Visual/Audible Indicators	Yes
Material	Plastic
Battery Type	Alkaline, 20V Max
Mount Type	Thumb Screw
Self-Leveling Range	+/-5 Degrees
Number of 45 Vials	0
Automatic Shutoff	Yes
Includes Batteries	Batteries Included
Outdoor Range - Maximum	2,600 ft
Working Range without Detector - Maximum	2,600 ft
Operating Temperature - Maximum	122 Degrees F
Laser Beam Color	Red
Indoor Range - Maximum	2,600 ft
Number of Planes	0
Weight	7.1 lb
Laser Output	2.7 mW +/- 5%
Standards	ISO 9001
Use Location	Outdoor
Operating Temperature - Minimum	-4 Degrees F
Level Indicators	Audible, Visual
Bluetooth	Not Bluetooth Compatible
Working Range with Detector - Maximum	2,600 ft
Preset Angles	180 Degrees

Description

Rotary Laser Kit, Accuracy +/-3/32 in @ 100 ft, Battery Type Alkaline, 20V Max, Bluetooth Not Bluetooth Compatible
