Shop All Pneumatic Flow Control Valves
Legris

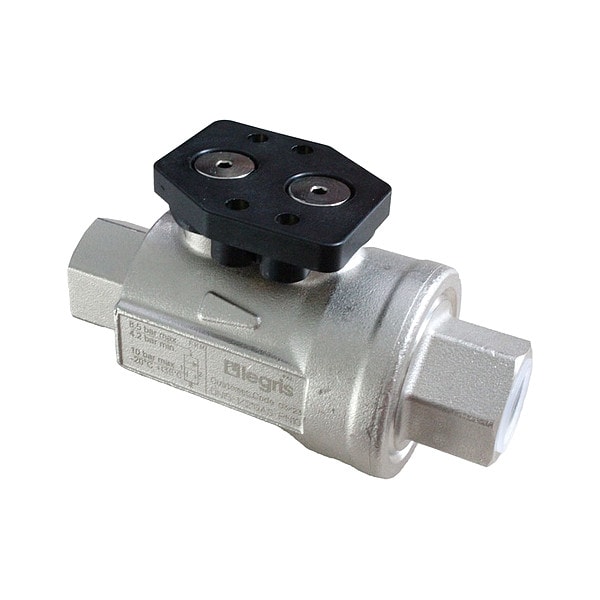

Axial Valve, FNPT, 2" x 2"
Mfr # 4203 50 44 20
Zoro # G1964173
Free Shipping & Returns
$677.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Body Material Nickel-Plated Brass
- Connection Type FNPT x FNPT
- Pipe Size 2 in x 2 in
- Hex Size 75 mm
- Pilot Port Size 1/8 in FNPT
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Legris
- MFR # 4203 50 44 20
- Zoro # G1964173
- UPC # 820099294582
- Country of Origin Italy
- Category Pneumatic Flow Control Valves
Dimensions
Pipe Size | 2 in x 2 in |
Hex Size | 75 mm |
Pilot Port Size | 1/8 in FNPT |
Overall Height | 4.5 in |
Overall Length | 7.39 in |
Pipe Size (Fittings) | 2" x 2" |
Details
Item | Axial Valve |
Body Material | Nickel-Plated Brass |
Connection Type | FNPT x FNPT |
Temp. Range | 15 Degrees to 275 Degrees F |
Max. Pressure | 150 psi |
Pilot Pressure | 60 to 115 psi |
Pipe Fitting Connection Type | FNPT x FNPT |
Valve Configuration | Normally Closed (NC) |
Basic Pipe Fitting Material | Metal |
Seal Material | FKM |
Maximum Operating Pressure | 150 psi |
Maximum Operating Temperature | 275 Degrees F |
Maximum Pilot Pressure | 115 psi |
Minimum Pilot Pressure | 60 psi |
Minimum Operating Temperature | -4 Degrees F |
Description
Axial Valve, Pipe Size 2 in x 2 in, Body Material Nickel-Plated Brass, Valve Configuration Normally Closed (NC), Pilot Port Size 1/8 in FNPT, Connection Type FNPT x FNPT, Maximum Operating Pressure 150 psi, Minimum Pilot Pressure 60 psi, Maximum Pilot Pressure 115 psi, Minimum Operating Temperature -4 Degrees F, Maximum Operating Temperature 275 Degrees F, Seal Material FKM, Hex Size 75 mm, Overall Length 7.39 in, Overall Height 4.5 in
