Leeson

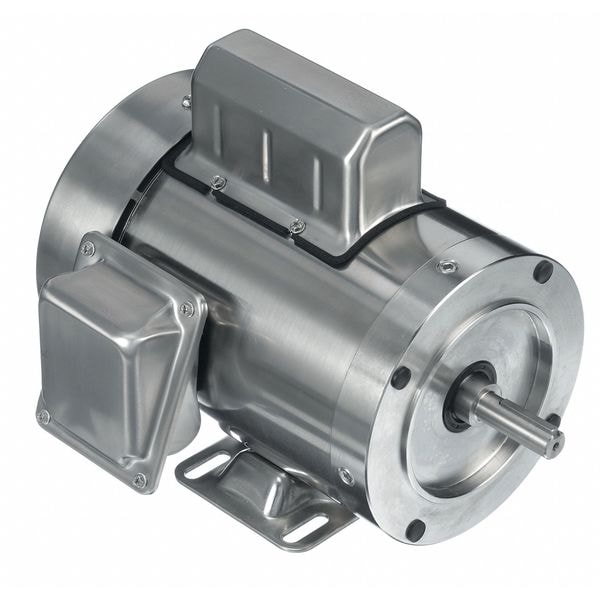

Washdown Motor, 1 HP, 1725 RPM

product price: $826.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Capacitor-Start
  • Phase Single
  • HP 1
  • RPM Range 1,701-1,800
  • Voltage 115/230V AC
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Shaft Length 1 7/8 in
Length Less Shaft 10 3/8 in
Shaft Dia. 5/8 in
Body Dia. 7.19 in
Overall Length 12 1/4 in
Manufacturers Warranty Length 1 yr
Bolt Circle Dia. 5 7/8 in

Description

Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 13.6/6.8 A, 56C Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design N, Motor Shaft Rotation CCW, CW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal
