Leeson

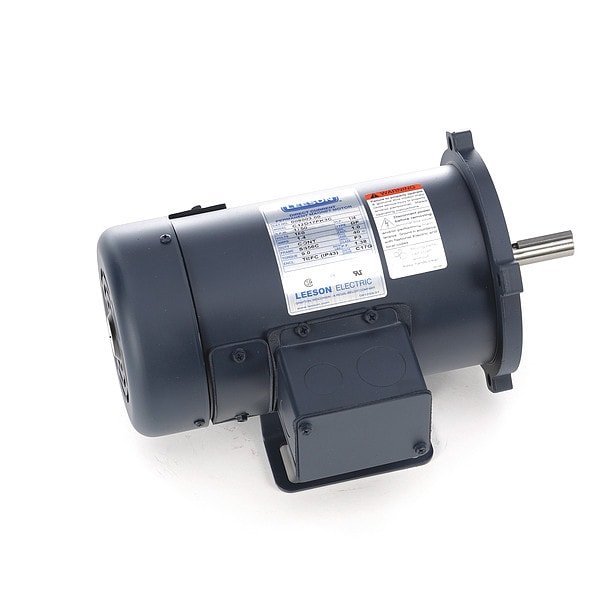

Magnet Permanent DC, 1/4 HP, 180V, 56C
Mfr # 098003.00
Zoro # G400829543
Free Shipping & Returns
$393.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- HP 1/4
- Voltage 180V DC
- Nameplate RPM 1,750
- Shaft Dia. 5/8 in
- Frame 56C
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Leeson
- MFR # 098003.00
- Zoro # G400829543
- UPC # 691720052952
- Country of Origin United States
- Category DC Permanent Magnet Motors
Dimensions
Shaft Dia. | 5/8 in |
Shaft Length | 2 1/16 in |
Overall Length | 11 5/16 in |
Length Less Shaft | 9 1/4 in |
Bolt Circle Dia. | 5 7/8 in |
Stud Size | Not Found |
Description
DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1/4 HP, Nameplate RPM 1,750, Voltage 180V DC, 1.40 A Full Load Amps, 56C Frame, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Removable Base No, Shaft Dia. 5/8 in, Shaft Length 2 1/16 in
