Shop All DC Permanent Magnet Motors
Leeson

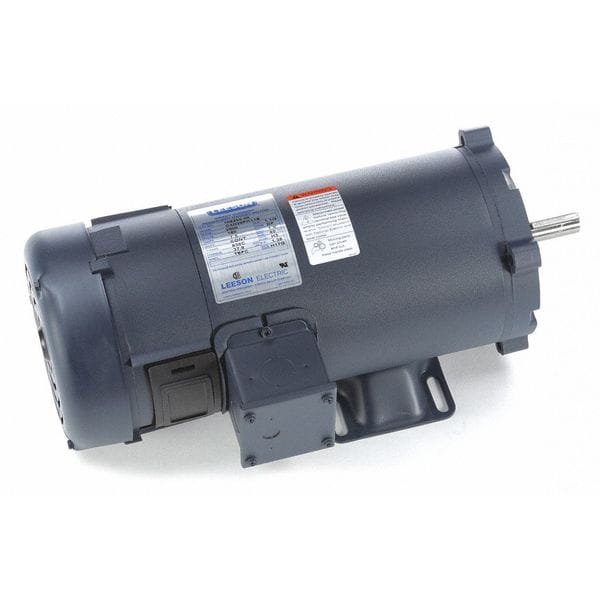

DC Permanent Magnet Motor, 7.5A, 1-1/2 HP
Mfr # 108265.00
Zoro # G4608619
product price: $823.99
/ea
Free Shipping & Returns
$823.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- HP 1 1/2
- Voltage 180V DC
- Nameplate RPM 2,500
- Shaft Dia. 5/8 in
- Frame 56C
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Leeson
- MFR # 108265.00
- Zoro # G4608619
- UPC # 691720006870
- Country of Origin United States
- Category DC Permanent Magnet Motors
Dimensions
Shaft Dia. | 5/8 in |
Length Less Shaft | 13 3/8 in |
Body Dia. | 5 5/8 in |
Shaft Length | 1 7/8 in |
Overall Length | 15 5/16 in |
Manufacturers Warranty Length | 1 yr |
Bolt Circle Dia. | 5 15/16 in |
Description
DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1 1/2 HP, Nameplate RPM 2,500, Voltage 180V DC, 7.5 A Full Load Amps, 56C Frame, Full Load Torque 37.8 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Frame Material Steel, Motor Bearings Ball
Restrictions
- Hazardous material
