Shop All DC Permanent Magnet Motors
Leeson

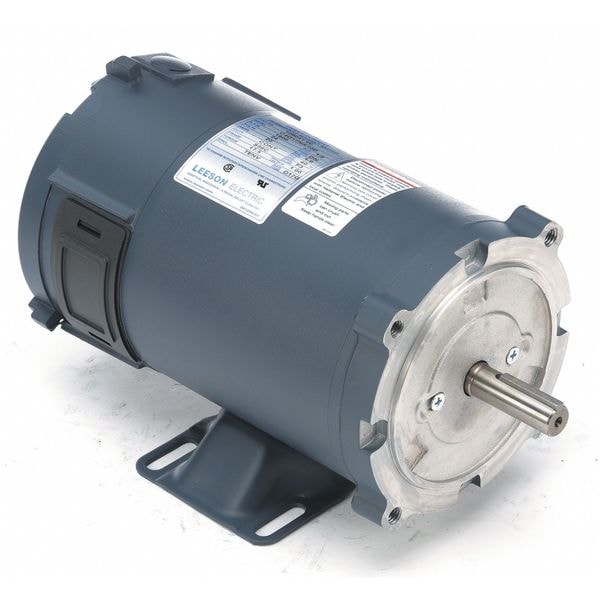

DC Permanent Magnet Motor, 20.0A, 24VDC
Mfr # 108051.00
Zoro # G4608801
Free Shipping & Returns
$539.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- HP 1/2
- Voltage 24V DC
- Nameplate RPM 1,800
- Shaft Dia. 5/8 in
- Frame 56C
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Leeson
- MFR # 108051.00
- Zoro # G4608801
- UPC # 691720006740
- Country of Origin United States
- Category DC Permanent Magnet Motors
Dimensions
Shaft Dia. | 5/8 in |
Length Less Shaft | 9 13/16 in |
Shaft Length | 1 7/8 in |
Body Dia. | 5 5/8 in |
Overall Length | 11 3/4 in |
Stud Size | 3/8"-16 |
Description
DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1/2 HP, Nameplate RPM 1,800, Voltage 24V DC, 20.0 A Full Load Amps, 56C Frame, Full Load Torque 17.5 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in
Restrictions
- Hazardous material
Ratings & Reviews
3 Reasons You Can Count On Us
-
Supplies for every job.
10 million items and the exact one you need.
-
When you need it fast, count on Zoro!
2 million products ship in 1 day.
-
Stretch your budget further.
Everyday low prices on the brands you love.
