Shop All DC Permanent Magnet Motors
Leeson

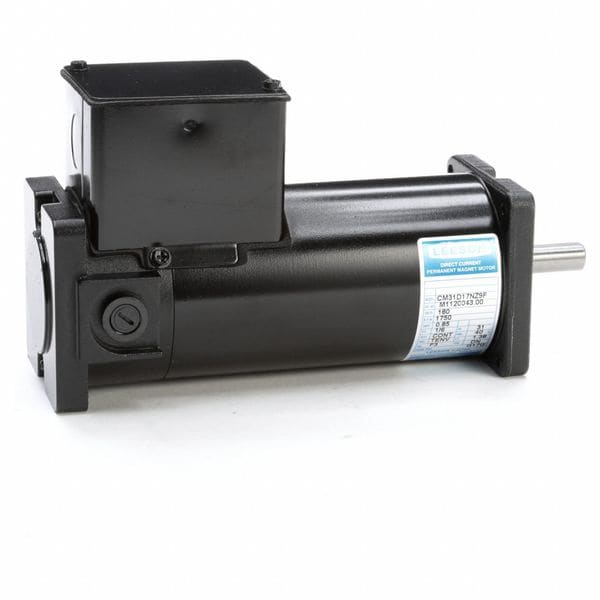

DC Permanent Magnet Motor, 180V DC, Round
Mfr # M1120043.00
Zoro # G208661680
product price: $315.99
/ea
Free Shipping & Returns
$315.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- HP 1/6
- Voltage 180V DC
- Nameplate RPM 1,750
- Shaft Dia. 1/2 in
- Frame 31
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Leeson
- MFR # M1120043.00
- Zoro # G208661680
- UPC # 691720090817
- Country of Origin United States
- Category DC Permanent Magnet Motors
Dimensions
Shaft Dia. | 1/2 in |
Shaft Length | 1 1/2 in |
Overall Length | 9 7/16 in |
Description
DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet DC, 1/6 HP, Nameplate RPM 1,750, Voltage 180V DC, 0.85 A Full Load Amps, 31 Frame, Motor Service Factor 1, Motor Thermal Protection No Protection, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Shaft Dia. 1/2 in, Motor Bearings Ball, Shaft Length 1 1/2 in, Brush Type External, Overall Length 9 7/16 in
Restrictions
- This item has been restricted from sale in the following states: CA
