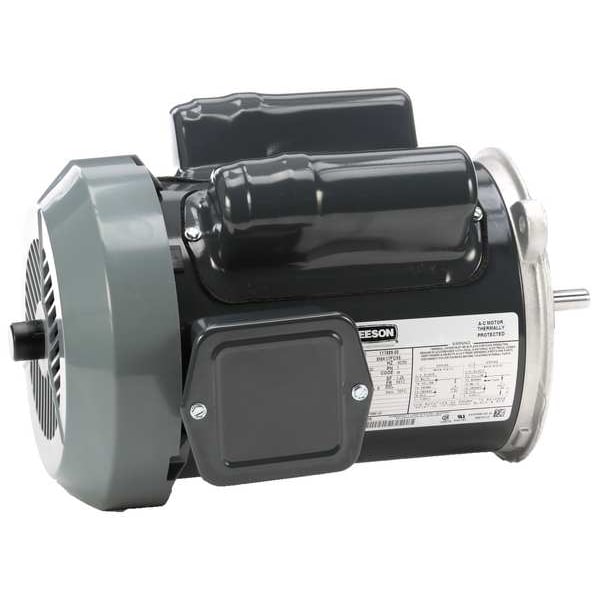

Auger Duty Motor, 3/4 HP, 115/230V AC, 1,800 Nameplate RPM, 56YZ Frame
Mfr # 117889.00
Zoro # G400722813
product price: $652.99
/ea
Free Shipping & Returns
$652.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Phase Single
- RPM Range 1,701-1,800
- Voltage 115/230V AC
- Frame 56YZ
- Motor Service Factor 1.25
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Leeson
- MFR # 117889.00
- Zoro # G400722813
- Country of Origin Mexico
- Category AC Farm Duty Motors
Details
| Item | Auger Duty Motor |
| Phase | Single |
| HP | 3/4 |
| RPM Range | 1,701-1,800 |
| Voltage | 115/230V AC |
| Frame | 56YZ |
| Motor Service Factor | 1.25 |
| Motor Thermal Protection | Manual |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Nameplate RPM | 1,800 |
| Motor Application | Farm Duty |
| Motor Mounting Type | Face |
| Motor Sub Application | Auger |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Hz | 60 Hz |
| Item - Farm Duty Motors | Auger Motor |
| Full Load Amps | 8.4/4.5-4.2 A |
| Usable @ 200V | No |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC |
| Usable @ 208V | No |
| No. of Speeds | 1 |
| Duty Cycle | Continuous |
Description
Auger Duty Motor, Single Phase, 3/4 HP, Nameplate RPM 1,800, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.4/4.5-4.2 A, 56YZ Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Manual, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face, Motor Shaft Design Flat
