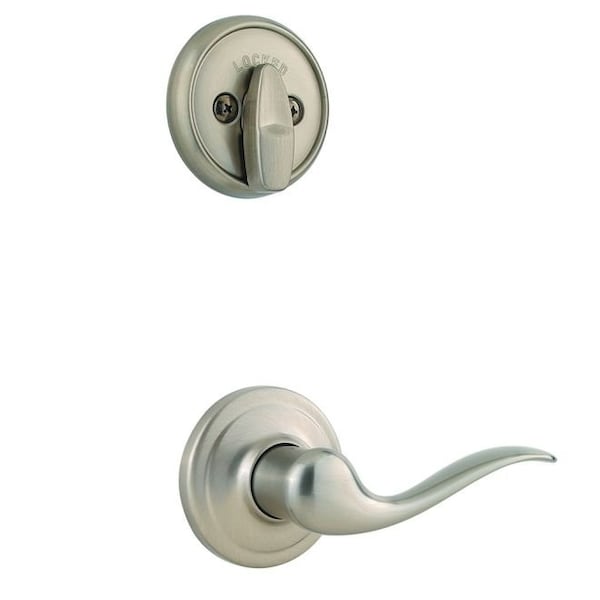

Tustin Lever Interior Single Cylinder Handleset Trim, Satin Nickel

Tustin Lever Right Hand Interior Single Cylinder Handleset Trim in Satin Nickel
Tustin LeverKwikset Signature SeriesTustin's fashionable wave silhouette is the perfect complement to homes with inspired style.Features:

• Reversible Lever Fits Both Left and Right Handed Doors
• Concealed Screws
• Elegant Wave Styling and Decorative Rose
• ANSI BHMA Grade 2 Certified

Specifications: Door Prep:

• Cross Bore 2-1/8
• Edge bore 1

Backset:

• Adjustable 2-3/8 or 2-3/4
• UL functions 2-3/4 standard
• or 2-3/8 optional

Door Thickness:

• 1-3/8 - 1-3/4 Doors standard.
• 2-1/4 doors optional on 720 and 740 functions only.

Cylinder:

• SmartKey Security or Pin And Tumbler

Faceplates:

• 1 x 2-1/4 Specify round corner, square corner or drive-in.

Strikes:

• 2-1/4 Full lip.
• Specify round corner or square corner.
• Other options available.

Bolt:

• 1/2 Throw

Door Handing:

• Reversible for both Left and Right handed doors.
• Specify handing only with Inactive and Interior Pack levers.

ANSI/BHMA:

• Grade 2 Certified

ADA:

• Functions 720 and 788 satisfy section 4. 13. 9 ADA requirement.

UL:

• Meets UL 3 hour fire rating for 725, 735, 745, 746, 755
• Optional UL 1/3 hour fire rating for all functions.

Finishes:

• Polished Brass - 3
• Antique Brass - 5
• Venetian Bronze - 11P
• Satin Nickel - 15
• Antique Nickel - 15A
• Polished Chrome - 26
• Satin Chrome - 26D
• Iron Black - 514

MUST ALSO PURCHASE 800 series outside trim for a complete handleset
