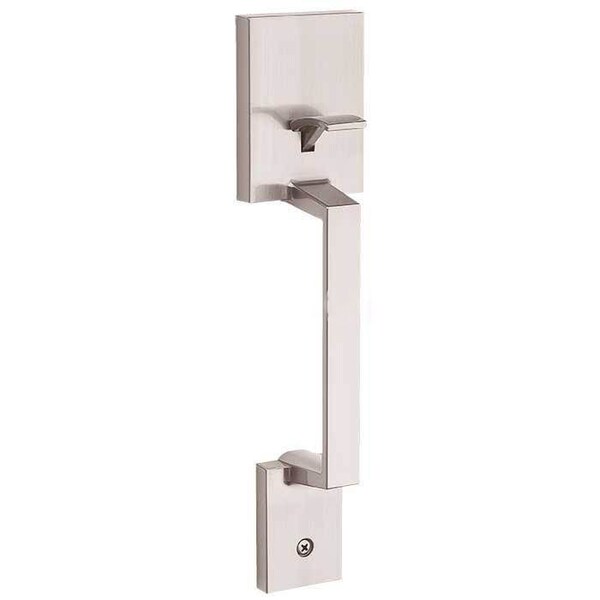

Amador Exterior Handle Only Handleset, Satin Nickel

Amador Exterior Handle Only Handleset in Satin Nickel
Amador HandlesetFeaturing SmartKeyAmador has a refined, structural look with its simplistic modern design. Priced affordably, this handleset offers acheivable style while maintaining superior security.Features:

• Featuring SmartKey Security - protecting against advanced break-in techniques.
• ANSI/BHMA Grade 3 Certified Security And Quality

Specifications: Door Prep:

• Deadbolt:
  • 2-1/8 or 1-1/2 Edge Bore 1
  • Latch Face 1 x 2-1/4
• Handle:
  • Cross Bore 2-1/8
  • Edge Bore 1

Backset:

• Deadbolt:
  • Adjustable to 2-3/8 or 2-3/4
• Handle:
  • Adjustable to 2-3/8 or 2-3/4

Door Thickness:

• 1-3/4 doors standard
• 2-1/4 doors optional
• Not designed for use on 1-3/8 doors

Cylinder:

• SmartKey Security

Faceplates:

• 1 x 2-1/4
• Specify round corner, square corner or drive-in

Strikes:

• Deadbolt:
  • 1 x 2-1/4. Specify round corner or square corner.
  • Other options available.
• Handle:
  • 2-1/4 full lip. Specify round corner or square corner.
  • Other options available.

Bolt:

• Deadbolt:
  • 1 throw
• Handle:
  • 1/2 throw

Door Handing:

• Reversible for right or left-hand doors

ANSI/BHMA:

• Deadbolt is Grade 3 Certified

ADA:

• N/A

UL:

• Optional UL 1/3 hour fire rating for all functions except 699 And 502

Finishes:

• 11P - Venetian Bronze*
• 15 - Satin Nickel*
• 514 - Matte Black*
• 26 - Polished Chrome
• 26D - Satin Chrome
• *Microban
