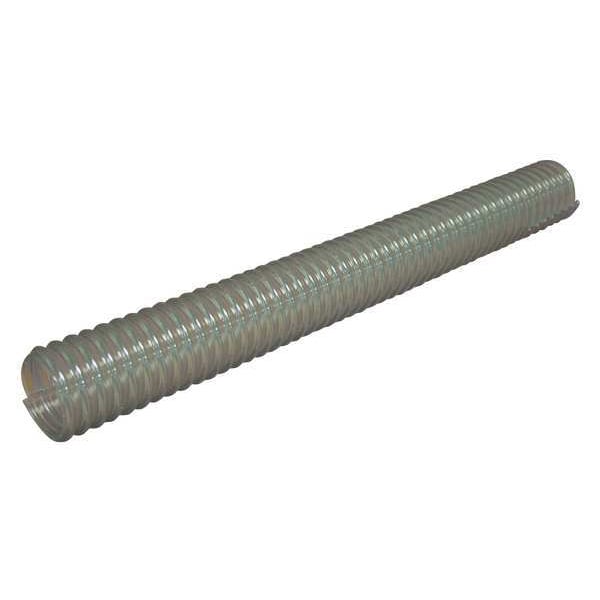

5" ID x 20 ft PVC Bulk Food Hose 30 PSI Clear

Mfr # WT500X20
Zoro # G2155557

$990.99

Item requires special delivery charges. A $100.00 per item surcharge will be applied.

Free 30-Day Returns

Key Features

Hose Inside Dia. 5 in
Hose Length 20 ft
Max. Working Pressure @ 70 F 30 psi
Hose Configuration Bulk Hose
Hose Cover Material PVC

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Kuriyama
MFR # WT500X20
Zoro # G2155557
Country of Origin Canada
Category Industrial Hoses

Dimensions

Hose Inside Dia.	5 in
Hose Length	20 ft
Inside Dia.	5"
Outside Dia.	5-3/4"
Length	20 ft.
Bend Radius	16 in
Food Hose Inside Dia.	5"
Inside Dia. - Food Hose	5"
Food Hose Length	20 ft.
Length - Food Hose	20 ft.

Details

Max. Working Pressure @ 70 F	30 psi
Hose Configuration	Bulk Hose
Hose Cover Material	PVC
Hose Color	Clear
Vacuum Rating	24 in Hg
Temp. Range	-4 Degrees to 150 Degrees F
Hose Tube Material	PVC
Standards	3-A, FDA, USDA
Cover Material	PVC
Max. Vacuum	24" Hg
Max. Vacuum - Food Hose	24" Hg
Food Hose Max. Pressure	30 psi
Agency Compliance	FDA, USDA, 3-A
Max. Pressure - Food Hose	30 psi
Safety Factor	4:1
Tube Material	PVC
Wet or Dry Application	Wet and Dry
Food Hose Max. Vacuum	24" Hg
Reinforcement	PVC Helix
Max. Pressure	30 psi
Item	Food Hose
Color	Clear
Cover	Corrugated
Hose Reinforcement Material	PVC
Compatible Chemicals	Acetic Acid (Glacial), Acetic Acid 20%, Air, Beverage, Calcium Chloride, Carbon Dioxide, Chromic Acid 10%, Chromic Acid 5%, Citric Acid 50%, Dry Food, Fertilizers, Formic Acid, Fresh Water, Fungicides, Glycerin, Herbicides, Hydrochloric/Muriatic Acid (20%), Hydrofluoric Acid (20%), Hydrogen Peroxide, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Pesticides, Phosphoric Acid (40% Solution), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sulfuric Acid (10% - 75%), Sulfuric Acid (to 10%), Wet Food
Not Recommended Chemicals	Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Brake Fluid, Chromic Acid 30%, Chromic Acid 50%, Diesel Fuel, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fuel Oil, Gasoline, Heptane, Hexane, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Turpentine, Vegetable Oil, Xylene
For Media Type	Acetic Acid, Air, Beverage, Calcium Chloride, Carbon Dioxide, Chromic Acid, Citric Acid, Dry Food, Fertilizers, Formic Acid, Fungicides, Glycerin, Herbicides, Hydrochloric Acid, Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Pesticides, Phosphoric Acid (40% Solution), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Sulfuric Acid, Water, Wet Food

Description

Food Hose, Hose Inside Dia. 5 in, Hose Length 20 ft, Hose Tube Material PVC, Hose Cover Material PVC, Hose Reinforcement Type Helix, Hose Reinforcement Material PVC, Hose Color Clear, Vacuum Rating 24 in Hg, Max. Working Pressure @ 70 F 30 psi, Safety Factor 4:1, Temp. Range -4 Degrees to 150 Degrees F, Standards 3-A, FDA, USDA, Bend Radius 16 in, Hose Configuration Bulk Hose
