Shop All Toolholder Parts
Km Systems

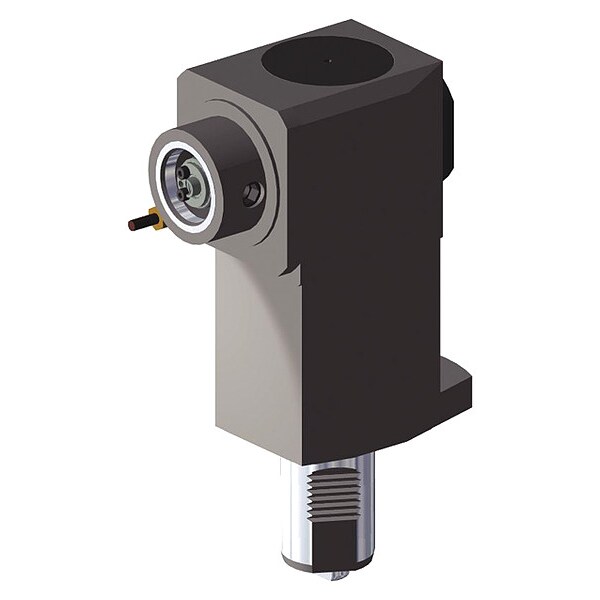

Taper Shank Tool Holder, AB2,
Mfr # TACU018KM50DR60908173
Zoro # G3756372
Free Shipping & Returns
$9,258.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Projection 160.00mm
- Nose Dia. 50.00mm
- Standards ISO 26622
- Shank Length 85.00mm
- Overall Length 292.00mm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Km Systems
- MFR # TACU018KM50DR60908173
- Zoro # G3756372
- UPC # 4059782420366
- Country of Origin Germany
- Category Toolholder Parts
Dimensions
Nose Dia. | 50.00mm |
Shank Length | 85.00mm |
Overall Length | 292.00mm |
Details
Item | Taper Shank Tool Holder |
Projection | 160.00mm |
Standards | ISO 26622 |
Compatible with Product Type | Hyper Quadrex 450 M Machine Series, Megaturn Nexus 900 M Machine Series, Quick Turn Nexus 300-450 M, MY Machine Series, Slant Turn Nexus 500 Machine Series, Slant Turn Nexus 550 M Machine Series |
Coolant Fed | Coolant Through |
Description
Taper Shank Tool Holder, Projection 160.00mm, Coolant Fed Coolant Through, Nose Dia. 50.00mm, Compatible with Product Type Hyper Quadrex 450 M Machine Series, Megaturn Nexus 900 M Machine Series, Quick Turn Nexus 300-450 M, MY Machine Series, Slant Turn Nexus 500 Machine Series, Slant Turn Nexus 550 M Machine Series
