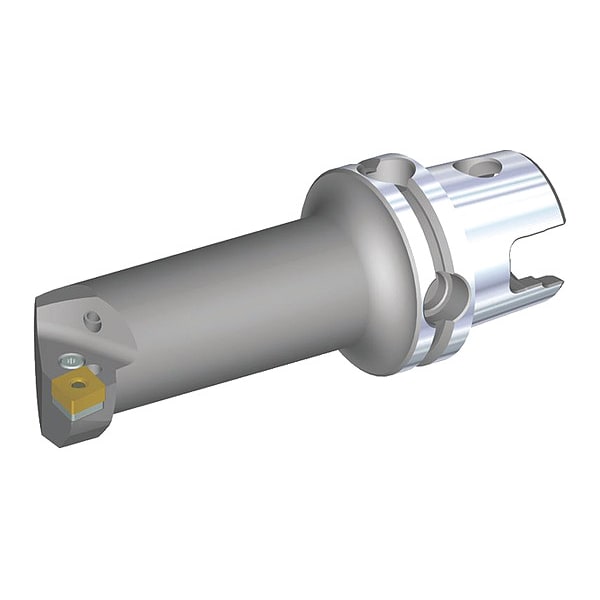

Indexable Cutting Head Unit, KM63TSS50PPCLNL12, 209.95mm L, 80 Degrees Diamond Insert Shape
Mfr # KM63TSS50PPCLNL12
Zoro # G3571380
product price: $667.99
/ea
Free Shipping & Returns
$667.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Overall Length 209.95mm
- Shank Dia. 63.00mm
- Cutting Direction Left Hand
- Insert Shape 80 Degrees Diamond
- ANSI Code KM63TSS50PPCLNL12
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Km Systems
- MFR # KM63TSS50PPCLNL12
- Zoro # G3571380
- UPC # 4059782055506
- Country of Origin United States
- Category Indexable Boring Bars
Dimensions
Overall Length | 209.95mm |
Shank Dia. | 63.00mm |
Insert Size | 120408 (432) |
Min. Bore Dia. | 50.00mm |
Max. Bore Depth | 117.14mm |
Insert Cutting Edge Length | 12.90mm |
Connection Size | KM63TS |
Details
Item | Indexable Cutting Head Unit |
Cutting Direction | Left Hand |
Insert Shape | 80 Degrees Diamond |
ANSI Code | KM63TSS50PPCLNL12 |
Rake | -5 Degrees Axial, -7 Degrees Radial |
Coolant Fed | Coolant Through |
Number of Coolant Holes | 1 |
Approach Angle | 95 Degrees |
Center to Cutting Tip | 27.00mm |
Cutting Application | Boring |
Insert Holding Type | P-Clamping (Lever Lock or Lock Pin) |
ISO Number | KM63TSS50PPCLNL12 |
Insert Clearance Angle | 0 Degrees |
Insert Style | CN |
Standards | ISO 26622 |
Side Cutting Edge Angle | -5 Degrees |
Description
Indexable Cutting Head Unit, Insert Shape 80 Degrees Diamond, Overall Length 209.95mm, KM63TSS50PPCLNL12, 95 Degrees , 27.00mm, Coolant Through, Boring, Left Hand
