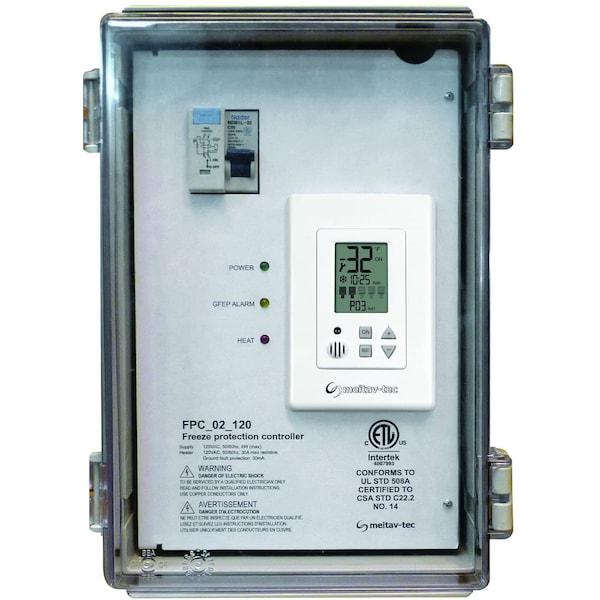

Freeze Protection Controller 120V, 30A, W/Gfep

PYRO FPC is a “Plug and Play” Freeze Protection Controller and a Power panel for frost protection, Heat tracing, ice and snow melting applications. When the temperature drops below the pre-defined, adjustable set-points, the contactor is activated energizing the heating elements. The Technician Settings mode enables an installer, or a technician to adjust the parameters for customized installations using the electronic controller installed in the front panel.
Up To 30A & 120/240V Outputs To The Heaters
Hold-On (Time delay) Adjustable Range Of Up To 99 hours
Temperature input from the provided temperature sensor (10 m. / 30 feet long) and also from a 3rd party aquastat
Integrated Electronic Controller with Backlit LCD Display
Integral 30mA GFEP allows manual reset from the front panel
Adjustable Set-points, Hold ON/OFF Time delay and manual ON duration
Manual and Automatic modes, selected by a button
Testing/commissioning mode for easy and fast system test, all year long (even during summer or at high temperature condition)
Multiple Sensors Input-Optional
ETL Certified for USA and Canada
