Shop All Fixture Clamps
J.W. Winco

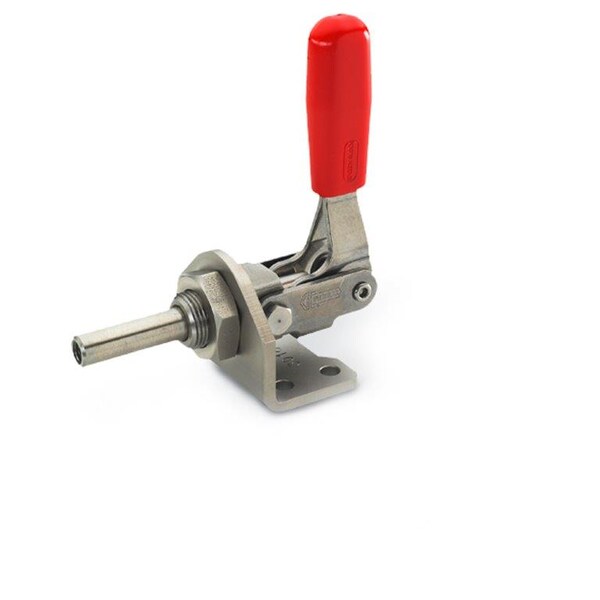

GN843.1-80-ASW Push-Pull Toggle Clamp
Mfr # 843.1-80-ASW
Zoro # G4726078
product price: $37.15
/ea
$37.15
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Thread Size M6
- Overall Height 2.76 in
- Overall Length 2.8 in
- Finish Zinc plated
- Arm Material Steel
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand J.W. Winco
- MFR # 843.1-80-ASW
- Zoro # G4726078
- Country of Origin Italy
- Category Fixture Clamps
Dimensions
Thread Size | M6 |
Overall Height | 2.76 in |
Overall Length | 2.8 in |
External Thread Dia. | M16-1.5 |
Plunger Dia. | 0.39 in |
Mounting Hole Dia. | 0.22 in |
Details
Finish | Zinc plated |
Arm Material | Steel |
Grip Material | Plastic |
Holding Force | 3000 N |
Vertical Mounting Hole Distance | 0.79 in |
Type | With mounting bracket |
Clamp Material | Steel |
Stroke | 0.83 in |
Plunger Material | Steel |
Description
GN 843.1 push-pull type toggle clamps can be mounted on a mounting bracket (Type ASW) or directly on the jig via the threaded body with hex nut (Type AS). The center bushing securing method allows the operating handle to be turned to the most favorable position.
