Shop All Fixture Clamps
J.W. Winco

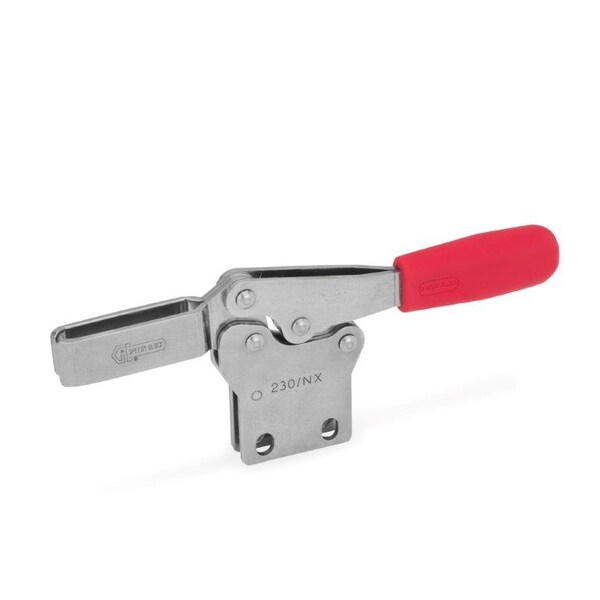

GN820.1-75-N-NI Horizontal Toggle Clamp
Mfr # 820.1-75-N-NI
Zoro # G4708499
product price: $37.15
/ea
$37.15
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Thread Size M5
- Overall Height 1.79 in
- Finish Matte
- Overall Length 4.65 in
- Mounting Distance 0.53 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand J.W. Winco
- MFR # 820.1-75-N-NI
- Zoro # G4708499
- Country of Origin Italy
- Category Fixture Clamps
Dimensions
Thread Size | M5 |
Overall Height | 1.79 in |
Overall Length | 4.65 in |
U-Bar Arm Length | 1.57 in |
Plate Length | 1.1 in |
Details
Finish | Matte |
Mounting Distance | 0.53 in |
Grip Material | Plastic |
Clamp Material | Stainless Steel |
Spindle Material | Stainless Steel |
Holding Force | 900 N |
Type | U-bar, two washers |
Description
GN 820.1 horizontal acting toggle clamps work according to the toggle principle: lever and clamping bar move in the opposite direction. They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position.
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
