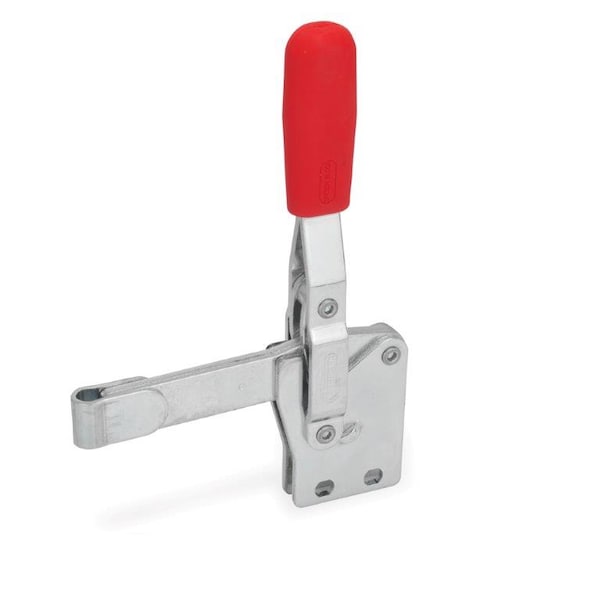

GN810.1-75-F Vertical Toggle Clamp
Mfr # 810.1-75-F
Zoro # G4699426
product price: $18.99
/ea
$18.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Thread Size M5
- Overall Height 4.29 in
- Finish Zinc plated
- Overall Length 2.64 in
- Grip Material Plastic
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand J.W. Winco
- MFR # 810.1-75-F
- Zoro # G4699426
- Country of Origin Italy
- Category Fixture Clamps
Dimensions
Thread Size | M5 |
Overall Height | 4.29 in |
Overall Length | 2.64 in |
Solid Bar Arm Length | 1.61 in |
Plate Length | 1.14 in |
Details
Finish | Zinc plated |
Grip Material | Plastic |
Clamp Material | Steel |
Holding Force | 750 N |
Spindle Material | Steel |
Mounting Distance | 0.59 in to 0.63 in |
Type | Solid bar, clasp |
Description
GN 810.1 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position. Vertical acting toggle clamps in the U-bar version with two flanged washers (Type B) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type BC. Type F version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component.
