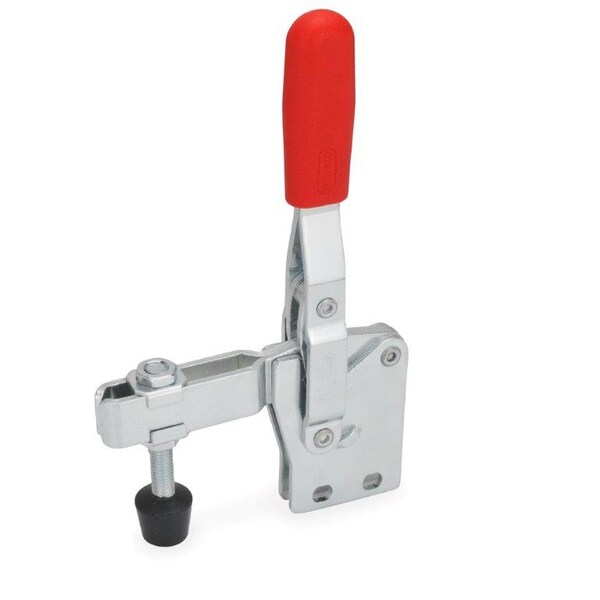

GN810.1-330-BC Vertical Toggle Clamp
Mfr # 810.1-330-BC
Zoro # G4711868
product price: $32.39
/ea
$32.39
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Thread Size M10
- Overall Height 8.58 in
- Overall Length 5.08 in
- Finish Zinc plated
- Grip Material Plastic
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand J.W. Winco
- MFR # 810.1-330-BC
- Zoro # G4711868
- Country of Origin Italy
- Category Fixture Clamps
Dimensions
| Thread Size | M10 |
| Overall Height | 8.58 in |
| Overall Length | 5.08 in |
| Plate Length | 1.97 in |
| U-Bar Arm Length | 2.6 in |
Details
| Finish | Zinc plated |
| Grip Material | Plastic |
| Mounting Distance | 1.13 in to 1.27 in |
| Clamp Material | Steel |
| Spindle Material | Steel |
| Type | U-bar, washers, spindle |
| Holding Force | 2400 N |
Description
GN 810.1 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position. Vertical acting toggle clamps in the U-bar version with two flanged washers (Type B) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type BC. Type F version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component.
